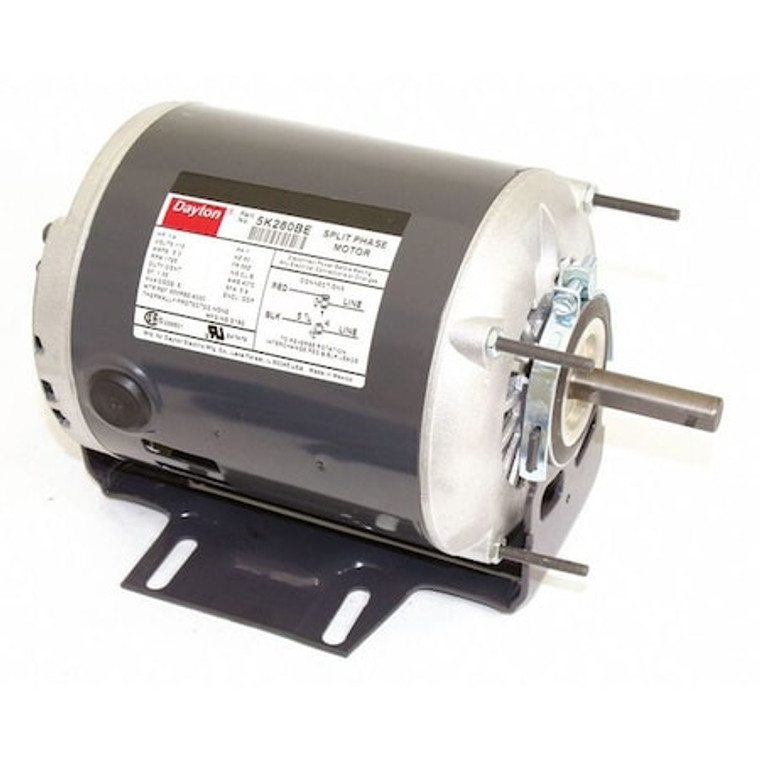

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 56Z - 5K280

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 56Z - 5K280

Dayton
SKU:
5K280
|
UPC:
190735345016
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.3 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Motor Frame Material:
Steel
No. of Speeds:
1
Max. Ambient Temp.:
40 Degrees C
Motor Thermal Protection:
None
Frame Material:
Rolled steel
Motor Efficiency Group:
Standard Efficient
Full Load Amps:
5.3 A
Motor Mounting Type:
Cradle Base
Voltage:
115V AC
Motor Service Factor:
1.35
Ins. Class:
B
Phase:
Single
Manufacturers Warranty Length:
1 yr
Duty:
Continuous
Nominal Efficiency:
52 %
Nameplate RPM:
1,725
Motor Bearings:
Ball
Overall Length:
9 13/16 in
Shaft Dia.:
1/2 in
Motor Shaft Design:
Flat
RPM Range:
1,701-1,800
Motor Enclosure Design:
Open Drip Proof
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application:
General Purpose
HP:
1/4 hp
Item:
General Purpose Motor
Footnotes:
31,39,50
Motor Design:
Split Phase
Standards:
CSA (156060), UL (E47479)
Frame:
56Z
Shaft Length:
1 7/8 in
Length Less Shaft:
7 15/16 in
Hz:
60 Hz
RPM Group:
1701-1800
Motor Shaft Rotation:
CW/CCW
Duty Cycle:
Continuous
Voltage @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Package Quantity:
1
