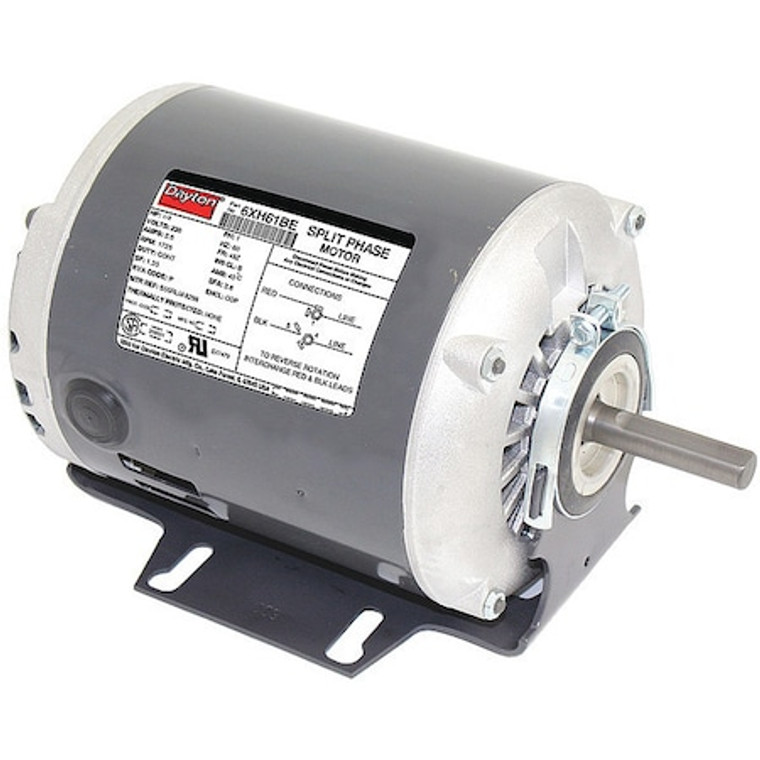

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48 - 6XH61

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48 - 6XH61

Dayton
SKU:
6XH61
|
UPC:
190735373125
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 2.5 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Max. Ambient Temp.:
40 Degrees C
Length Less Shaft:
7 15/16 in
HP:
1/4 hp
Frame Material:
Rolled steel
No. of Speeds:
1
Manufacturers Warranty Length:
1 yr
Motor Frame Material:
Steel
Frame:
48Z
Motor Shaft Design:
Flat
Ins. Class:
B
Motor Design:
Split Phase
Voltage:
230V AC
Nameplate RPM:
1,725
Nominal Efficiency:
53.7 %
Motor Application:
General Purpose
Duty:
Continuous
RPM Group:
1701-1800
Motor Bearings:
Ball
Hz:
60 Hz
Motor Shaft Rotation:
CW/CCW
Phase:
Single
RPM Range:
1,701-1,800
Motor Mounting Type:
Cradle Base
Shaft Dia.:
1/2 in
Motor Thermal Protection:
None
Motor Efficiency Group:
Standard Efficient
Overall Length:
9 13/16 in
Motor Enclosure Design:
Open Drip Proof
Full Load Amps:
2.5 A
Motor Service Factor:
1.35
Voltage Compatibility:
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Shaft Length:
1 7/8 in
Item:
General Purpose Motor
Standards:
CSA (258501), UL (E47479)
Duty Cycle:
Continuous
RPM @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Package Quantity:
1
