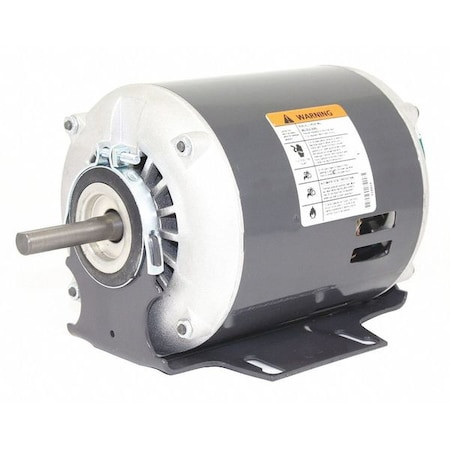

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48 - 6K718

GP Mtr, Split Ph, ODP, 1/4 HP, 1725 rpm, 48 - 6K718

Dayton
SKU:
6K718
|
UPC:
190735366356
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.3 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Motor Frame Material:
Steel
Motor Mounting Type:
Cradle Base
Length Less Shaft:
7 15/16 in
Voltage:
115V AC
Standards:
CSA (258501), UL (E37403)
Motor Service Factor:
1.35
Shaft Length:
1 7/8 in
Motor Efficiency Group:
Standard Efficient
Motor Enclosure Design:
Open Drip Proof
Motor Bearings:
Ball
Hz:
60 Hz
Motor Application:
General Purpose
RPM Range:
1,701-1,800
Nominal Efficiency:
52 %
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Full Load Amps:
5.3 A
HP:
1/4 hp
Shaft Dia.:
1/2 in
No. of Speeds:
1
Ins. Class:
B
Max. Ambient Temp.:
40 Degrees C
Frame:
48Z
Motor Design:
Split Phase
Motor Thermal Protection:
Auto
Phase:
Single
Motor Shaft Rotation:
CW/CCW
Frame Material:
Rolled steel
Item:
General Purpose Motor
Nameplate RPM:
1,725
Manufacturers Warranty Length:
1 yr
Overall Length:
9 13/16 in
RPM Group:
1701-1800
Motor Shaft Design:
Flat
Duty:
Continuous
Duty Cycle:
Continuous
Full Load Amps @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Package Quantity:
1
