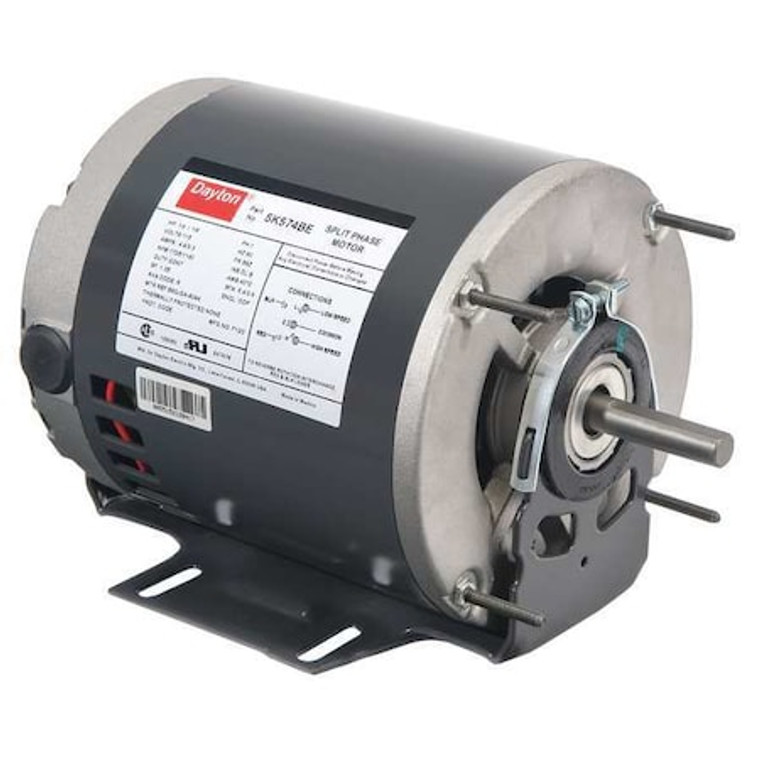

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56Z - 5K554

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56Z - 5K554

Dayton
SKU:
5K554
|
UPC:
190735345283
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/3 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 6.1/3.8 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Round, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Item:
General Purpose Motor
Phase:
Single
Motor Shaft Rotation:
CW/CCW
Frame:
56Z
HP:
1/3 hp, 1/6 hp
Hz:
60 Hz
Motor Service Factor:
1.35
Ins. Class:
B
Motor Bearings:
Ball
RPM Group:
1701-1800
Max. Ambient Temp.:
40 Degrees C
RPM Range:
1,701-1,800
Motor Mounting Type:
Cradle Base
Full Load Amps:
6.1/3.8 A
Duty:
Continuous
Motor Frame Material:
Steel
Nameplate RPM:
1,725/1,140
Motor Application:
General Purpose
Shaft Dia.:
1/2 in
Frame Material:
Rolled steel
Motor Shaft Design:
Round
Manufacturers Warranty Length:
1 yr
No. of Speeds:
2
Motor Efficiency Group:
Standard Efficient
Footnotes:
31,45,50
Overall Length:
10 5/16 in
Standards:
CSA (156060), UL (E47479)
Motor Thermal Protection:
None
Nominal Efficiency:
59 %
Motor Design:
Split Phase
Length Less Shaft:
8 7/16 in
Voltage:
115V AC
Shaft Length:
1 7/8 in
Motor Enclosure Design:
Open Drip Proof
Duty Cycle:
Continuous
Full Load Amps @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Package Quantity:
1
