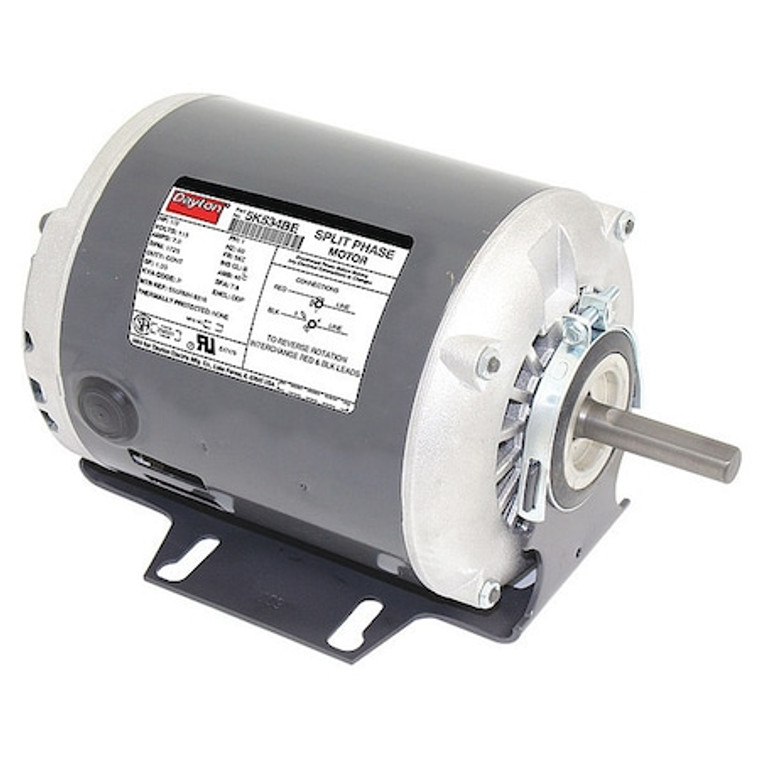

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56Z - 5K534

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56Z - 5K534

Dayton
SKU:
5K534
|
UPC:
190735345276
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/3 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.0 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Flat, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Duty:
Continuous
RPM Range:
1,701-1,800
Standards:
CSA (258501), UL (E47479)
Motor Thermal Protection:
None
Motor Design:
Split Phase
Shaft Length:
1 7/8 in
Hz:
60 Hz
HP:
1/3 hp
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Length Less Shaft:
7 15/16 in
Motor Shaft Design:
Flat
Motor Bearings:
Ball
Nominal Efficiency:
54.3 %
Motor Service Factor:
1.35
Footnotes:
31,50
Nameplate RPM:
1,725
Motor Frame Material:
Steel
Frame Material:
Rolled steel
No. of Speeds:
1
Manufacturers Warranty Length:
1 yr
Overall Length:
9 13/16 in
Motor Efficiency Group:
Standard Efficient
Frame:
56Z
Motor Application:
General Purpose
Shaft Dia.:
1/2 in
Voltage:
115V AC
Motor Mounting Type:
Cradle Base
Motor Shaft Rotation:
CW/CCW
RPM Group:
1701-1800
Ins. Class:
B
Max. Ambient Temp.:
40 Degrees C
Phase:
Single
Full Load Amps:
7.0 A
Motor Enclosure Design:
Open Drip Proof
Item:
General Purpose Motor
Duty Cycle:
Continuous
Full Load Amps @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Package Quantity:
1
