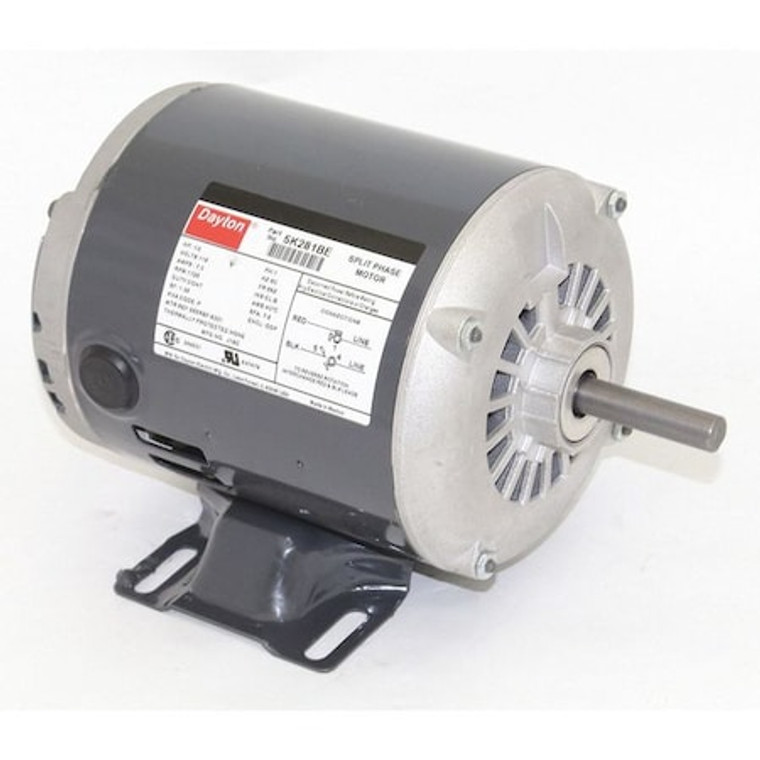

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56Z - 5K281

GP Mtr, Split Ph, ODP, 1/3 HP, 1725 rpm, 56Z - 5K281

Dayton
SKU:
5K281
|
UPC:
190735345023
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/3 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 7.0 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Flat, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
No. of Speeds:
1
Motor Enclosure Design:
Open Drip Proof
Duty:
Continuous
Motor Frame Material:
Steel
Motor Application:
General Purpose
Phase:
Single
Voltage:
115V AC
Motor Design:
Split Phase
Max. Ambient Temp.:
40 Degrees C
Nameplate RPM:
1,725
Full Load Amps:
7.0 A
Motor Bearings:
Ball
Motor Shaft Design:
Flat
HP:
1/3 hp
Standards:
CSA (156060), UL (E47479)
Length Less Shaft:
7 1/2 in
Shaft Length:
1 7/8 in
Item:
General Purpose Motor
Motor Mounting Type:
Rigid Base
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Efficiency Group:
Standard Efficient
Ins. Class:
B
Hz:
60 Hz
Manufacturers Warranty Length:
1 yr
Frame:
56Z
Motor Thermal Protection:
None
RPM Group:
1701-1800
Frame Material:
Rolled steel
Overall Length:
9 1/2 in
Nominal Efficiency:
54.3 %
Motor Shaft Rotation:
CW/CCW
Motor Service Factor:
1.35
Footnotes:
31,50
RPM Range:
1,701-1,800
Shaft Dia.:
1/2 in
Duty Cycle:
Continuous
Service Factor @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Package Quantity:
1
