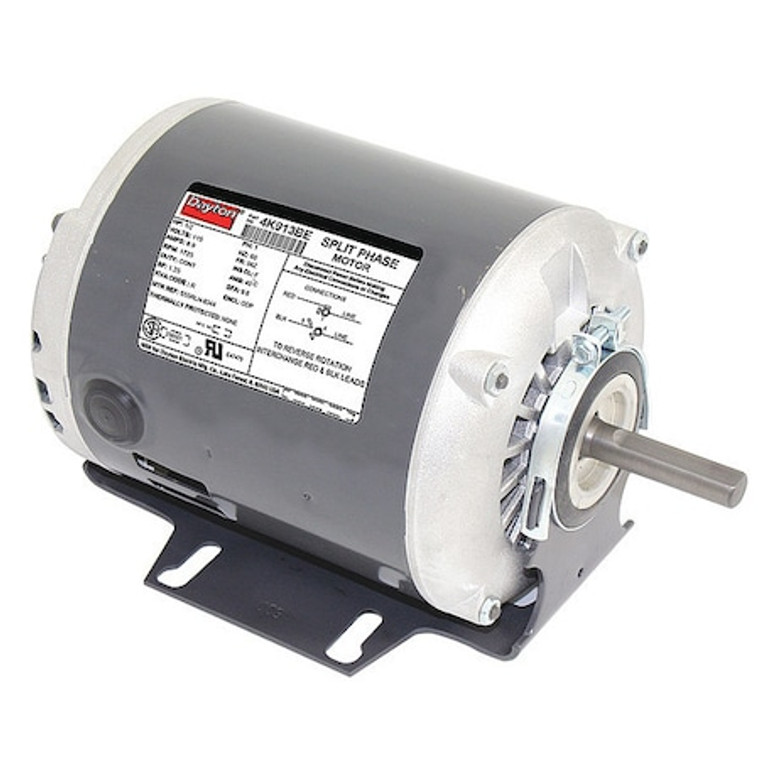

GP Mtr, Split Ph, ODP, 1/2 HP, 1725 rpm, 56Z - 4K913

GP Mtr, Split Ph, ODP, 1/2 HP, 1725 rpm, 56Z - 4K913

Dayton
SKU:
4K913
|
UPC:
190735327593
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/2 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 8.9 A, 56Z Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Nominal Efficiency:
54.5 %
Voltage:
115V AC
Overall Length:
10 5/16 in
Motor Mounting Type:
Cradle Base
Motor Enclosure Design:
Open Drip Proof
Item:
General Purpose Motor
Standards:
CSA (156060), UL (E47479)
Motor Frame Material:
Steel
Nameplate RPM:
1,725
Shaft Length:
1 7/8 in
Motor Thermal Protection:
None
Motor Shaft Design:
Keyed
No. of Speeds:
1
Length Less Shaft:
8 7/16 in
Duty:
Continuous
RPM Range:
1,701-1,800
Footnotes:
31
RPM Group:
1701-1800
Phase:
Single
Motor Shaft Rotation:
CW/CCW
Full Load Amps:
8.9 A
HP:
1/2 hp
Motor Efficiency Group:
Standard Efficient
Motor Design:
Split Phase
Frame Material:
Rolled steel
Frame:
56Z
Hz:
60 Hz
Motor Service Factor:
1.25
Shaft Dia.:
1/2 in
Motor Bearings:
Ball
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Max. Ambient Temp.:
40 Degrees C
Ins. Class:
F
Manufacturers Warranty Length:
1 yr
Motor Application:
General Purpose
Duty Cycle:
Continuous
Voltage @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
HP @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Package Quantity:
1
