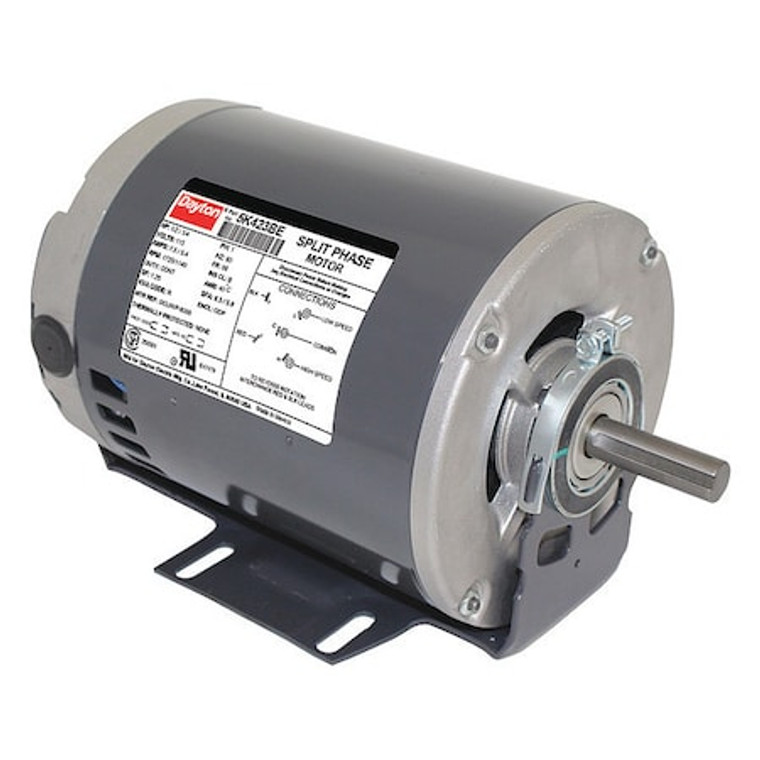

GP Mtr, Split Ph, ODP, 1/2 HP, 1725 rpm, 56 - 5K423

GP Mtr, Split Ph, ODP, 1/2 HP, 1725 rpm, 56 - 5K423

Dayton
SKU:
5K423
|
UPC:
190735345122
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Motor, Single Phase, Motor Design Split Phase, 1/2 hp, 1/4 hp HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.5/5.4 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Shaft Design Keyed, Motor Frame Material Steel
Additional Information
Country of Origin:
Mexico
Phase:
Single
Length Less Shaft:
8 15/16 in
Motor Application:
General Purpose
Frame Material:
Rolled steel
Nameplate RPM:
1,725/1,140
Voltage:
115V AC
Motor Bearings:
Ball
Motor Enclosure Design:
Open Drip Proof
Motor Mounting Type:
Cradle Base
Hz:
60 Hz
Nominal Efficiency:
63.9 %
Shaft Dia.:
5/8 in
RPM Group:
1701-1800
Motor Service Factor:
1.25
Frame:
56
Motor Thermal Protection:
None
Overall Length:
10 13/16 in
No. of Speeds:
2
Motor Frame Material:
Steel
Footnotes:
45
Full Load Amps:
7.5/5.4 A
Ins. Class:
B
Motor Design:
Split Phase
Max. Ambient Temp.:
40 Degrees C
RPM Range:
1,701-1,800
Voltage Compatibility:
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Shaft Design:
Keyed
Standards:
CSA (156060), UL (E47479)
Motor Shaft Rotation:
CW/CCW
HP:
1/2 hp, 1/4 hp
Duty:
Continuous
Item:
General Purpose Motor
Shaft Length:
1 7/8 in
Manufacturers Warranty Length:
1 yr
Motor Efficiency Group:
Standard Efficient
Duty Cycle:
Continuous
HP @ 50Hz:
Not Applicable
RPM @ 50Hz:
Not Applicable
Service Factor @ 50Hz:
Not Applicable
Full Load Amps @ 50Hz:
Not Applicable
Voltage @ 50Hz:
Not Applicable
Package Quantity:
1
