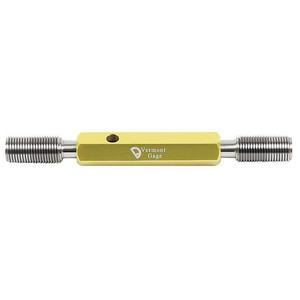

Go/No Go Set Plug Assy, M8.00-1.00 6g - 372120030

Go/No Go Set Plug Assy, M8.00-1.00 6g - 372120030

Vermont Gage
SKU:
372120030
|
UPC:
662631877729
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly Set, Dimension Type Metric, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 1, Thread Class 6G, Thread Size M8 x 1.00, Thread Type Metric, Tolerance Class X, Gauge Length - Go Member 19.00 mm, Gauge Length - No-Go Member 19.00 mm, Gauge Material Tool Steel, Handle Color Yellow, Handle Length 3 in, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Pitch Diameter - Go Member 7.32 mm
Additional Information
Country of Origin:
United States
Item:
Set Thread Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
6g
Material:
Tool steel
Overall Length:
4-3/4";Thread Size=M8 X 1"
Thread Type:
Metric
Tolerance:
Class X
Includes:
Certificate of Accuracy with NIST Traceable
Application:
Inspect External Product Unified And M Series Of Threads On Screws, Bolts, Studs; Inspect, Calibrate And Set Adjustable Thread Ring Gages
Handle Length:
3";Meets/Exceeds=ASME B1.16M (Metric M Series Screw Threads)
Gauge Length - No-Go Member:
19.00 mm
Gauge Length - Go Member:
19.00 mm
Gauge Type:
Go/No-Go (Plus/Minus)
Standards:
ASME B1.16M
Hardness:
RC 60-62
Dimension Type:
Metric
Handle Design:
Double End
Included Handle:
Taperlock 1
Gauge Material:
Tool Steel
Handle Color:
Yellow
Tolerance Class:
X
Included Certification:
Certificate of Accuracy with NIST Traceability
Thread Direction:
Right Hand
Thread Class:
6G
Pitch Diameter - Go Member:
7.32 mm
Pitch Diameter - No-Go Member:
7.21 mm
Package Quantity:
1
