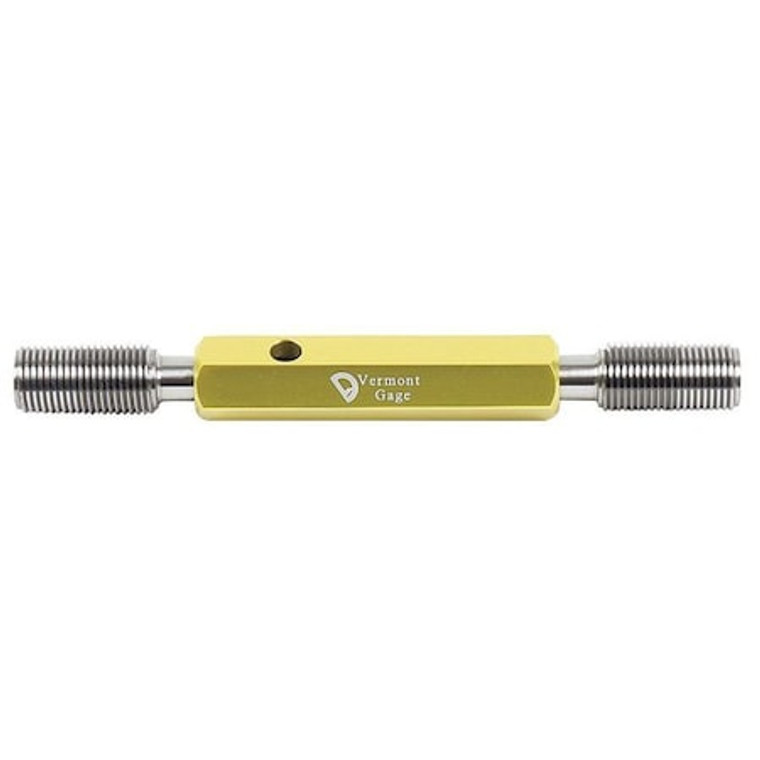

Go/No Go Set Plug Assy, M20.0-2.50 6g - 372146530

Go/No Go Set Plug Assy, M20.0-2.50 6g - 372146530

Vermont Gage
SKU:
372146530
|
UPC:
662631524685
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly Set, Dimension Type Metric, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 3, Thread Class 6G, Thread Size M20 x 2.50, Thread Type Metric, Tolerance Class X, Gauge Length - Go Member 47.60 mm, Gauge Length - No-Go Member 31.80 mm, Gauge Material Tool Steel, Handle Color Yellow, Handle Length 3 5/8 in, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Pitch Diameter - Go Member 18.33 mm
Additional Information
Country of Origin:
United States
Item:
Set Thread Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
6g
Material:
Tool steel
Overall Length:
6-7/8";Thread Size=M20 X 2.5"
Thread Type:
Metric
Tolerance:
Class X
Includes:
Certificate of Accuracy with NIST Traceable
Application:
Inspect External Product Unified And M Series Of Threads On Screws, Bolts, Studs; Inspect, Calibrate And Set Adjustable Thread Ring Gages
Handle Length:
3-5/8";Meets/Exceeds=ASME B1.16M (Metric M Series Screw Threads)
Handle Design:
Double End
Gauge Material:
Tool Steel
Pitch Diameter - No-Go Member:
18.16 mm
Thread Direction:
Right Hand
Handle Color:
Yellow
Tolerance Class:
X
Included Handle:
Taperlock 3
Hardness:
RC 60-62
Gauge Length - No-Go Member:
31.80 mm
Included Certification:
Certificate of Accuracy with NIST Traceability
Dimension Type:
Metric
Standards:
ASME B1.16M
Thread Class:
6G
Pitch Diameter - Go Member:
18.33 mm
Gauge Type:
Go/No-Go (Plus/Minus)
Gauge Length - Go Member:
47.60 mm
Package Quantity:
1
