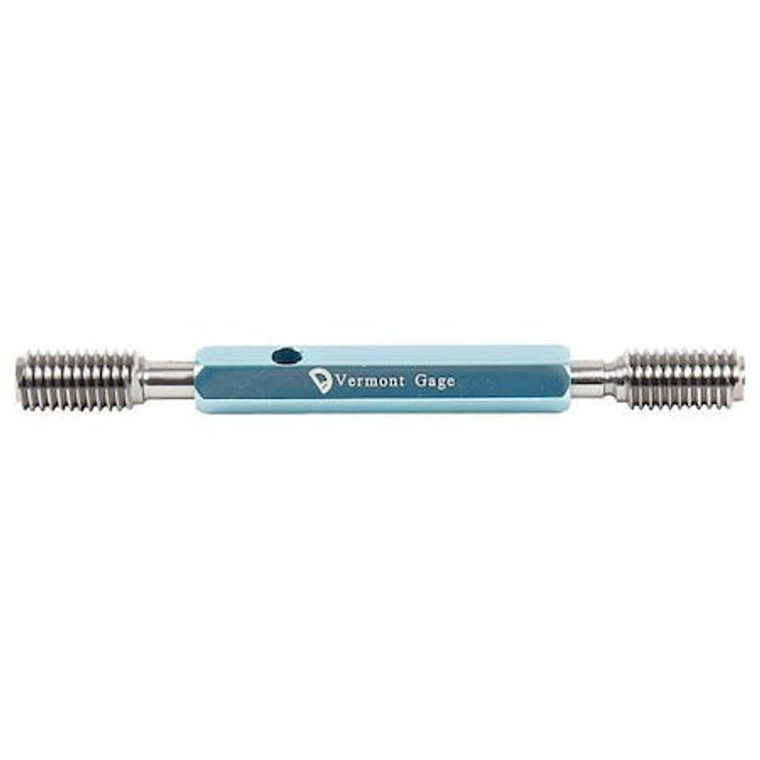

Go/No Go Set Plug Assy, 5/16-24 UNF 2A - 371130550

Go/No Go Set Plug Assy, 5/16-24 UNF 2A - 371130550

Vermont Gage
SKU:
371130550
|
UPC:
662631506155
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly Set, Dimension Type Inch, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 1, Thread Class 2A, Thread Size 5/16 In.-24, Thread Type UNF, Tolerance Class X, Gauge Length - Go Member 3/4 in, Gauge Length - No-Go Member 3/4 in, Gauge Material Tool Steel, Handle Color Blue, Handle Length 2 3/4 in, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Pitch Diameter - Go Member 0.2843 in
Additional Information
Country of Origin:
United States
Item:
Set Thread Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
2A
Material:
Tool Steel - Rc 60/62
Overall Length:
3/4";Thread Size=5/16"-24"
Thread Type:
UNF
Tolerance:
Class X
Handle Length:
2-3/4";Includes=Certificate of Accuracy with NIST Traceable"
Meets/Exceeds:
ASME B1.2
Application:
For Calibration of Measuring Equipment or to Gage Parts Directly
Pitch Diameter - No-Go Member:
0.2806 in
Thread Direction:
Right Hand
Included Certification:
Certificate of Accuracy with NIST Traceability
Tolerance Class:
X
Handle Design:
Double End
Dimension Type:
Inch
Gauge Length - No-Go Member:
3/4 in
Handle Color:
Blue
Included Handle:
Taperlock 1
Thread Class:
2A
Gauge Material:
Tool Steel
Pitch Diameter - Go Member:
0.2843 in
Gauge Length - Go Member:
3/4 in
Hardness:
RC 60-62
Standards:
ASME B1.2
Gauge Type:
Go/No-Go (Plus/Minus)
Package Quantity:
1
