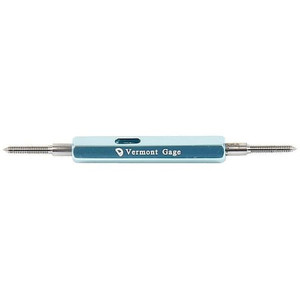

Go/No Go Set Plug Assy, 3/4-16 UNF 2A - 371153050

Go/No Go Set Plug Assy, 3/4-16 UNF 2A - 371153050

Vermont Gage
SKU:
371153050
|
UPC:
662631510657
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly Set, Dimension Type Inch, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 3, Thread Class 2A, Thread Size 3/4 In.-16, Thread Type UNF, Tolerance Class X, Gauge Length - Go Member 1 1/4 in, Gauge Length - No-Go Member 1 1/4 in, Gauge Material Tool Steel, Handle Color Blue, Handle Length 3 1/4 in, Hardness RC 60-62, Included Certification Certificate of Accuracy with NIST Traceability, Pitch Diameter - Go Member 0.7079 in
Additional Information
Country of Origin:
United States
Item:
Set Thread Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
2A
Material:
Tool Steel - Rc 60/62
Overall Length:
1-1/4";Thread Size=3/4"-16"
Thread Type:
UNF
Tolerance:
Clase X
Handle Length:
3-1/4";Includes=Certificate of Accuracy with NIST Traceable"
Application:
For Calibration of Measuring Equipment or to Gage Parts Directly
Meets/Exceeds:
ASME B1.2
Gauge Length - Go Member:
1 1/4 in
Pitch Diameter - No-Go Member:
0.7029 in
Gauge Length - No-Go Member:
1 1/4 in
Included Handle:
Taperlock 3
Gauge Material:
Tool Steel
Hardness:
RC 60-62
Pitch Diameter - Go Member:
0.7079 in
Handle Color:
Blue
Thread Class:
2A
Handle Design:
Double End
Standards:
ASME B1.2
Gauge Type:
Go/No-Go (Plus/Minus)
Tolerance Class:
X
Included Certification:
Certificate of Accuracy with NIST Traceability
Thread Direction:
Right Hand
Dimension Type:
Inch
Package Quantity:
1
