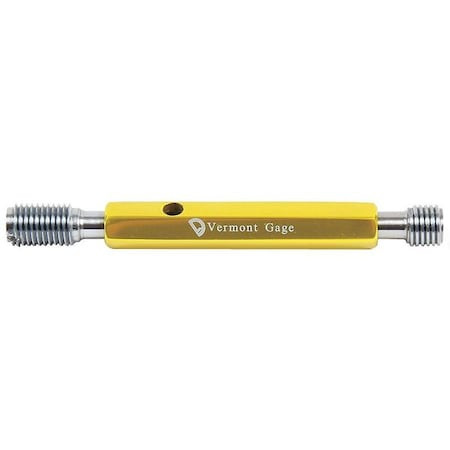

Go/No Go Plug Gage Assy, M8.0-1.25 6H - 302120530

Go/No Go Plug Gage Assy, M8.0-1.25 6H - 302120530

Vermont Gage
SKU:
302120530
|
UPC:
662631342081
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly, Dimension Type Metric, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 1, Thread Class 6H, Thread Size M8 x 1.25, Thread Type Metric, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - Go Member 12.70 mm, Gauge Length - No-Go Member 7.90 mm, Gauge Material Tool Steel, Handle Color Yellow, Handle Length 3 in, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability
Additional Information
Country of Origin:
United States
Item:
Taperlock Thread Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
6H
Material:
Tool Steel - Rc 70/72
Finish:
Chrome plated
Overall Length:
Go
Thread Size:
M8 X 1.25
Thread Type:
Metric
Tolerance:
Class X
Handle Length:
3";Application=For Calibration of Measuring Equipment or to Gage Parts Directly"
Includes:
Certificate of Accuracy with NIST Traceable
Meets/Exceeds:
ASME B1.16M
Gauge Type:
Go/No-Go (Plus/Minus)
Gauge Finish:
Chrome Plated
Thread Class:
6H
Gauge Length - Go Member:
12.70 mm
Gauge Length - No-Go Member:
7.90 mm
Handle Design:
Double End
Tolerance Class:
X
Gauge Material:
Tool Steel
Included Certification:
Certificate of Accuracy with NIST Traceability
Handle Color:
Yellow
Dimension Type:
Metric
Standards:
ASME B1.16M
Thread Direction:
Right Hand
Hardness:
RC 70-72
Included Handle:
Taperlock 1
Pitch Diameter - No-Go Member:
7.35 mm
Pitch Diameter - Go Member:
7.19 mm
Package Quantity:
1
