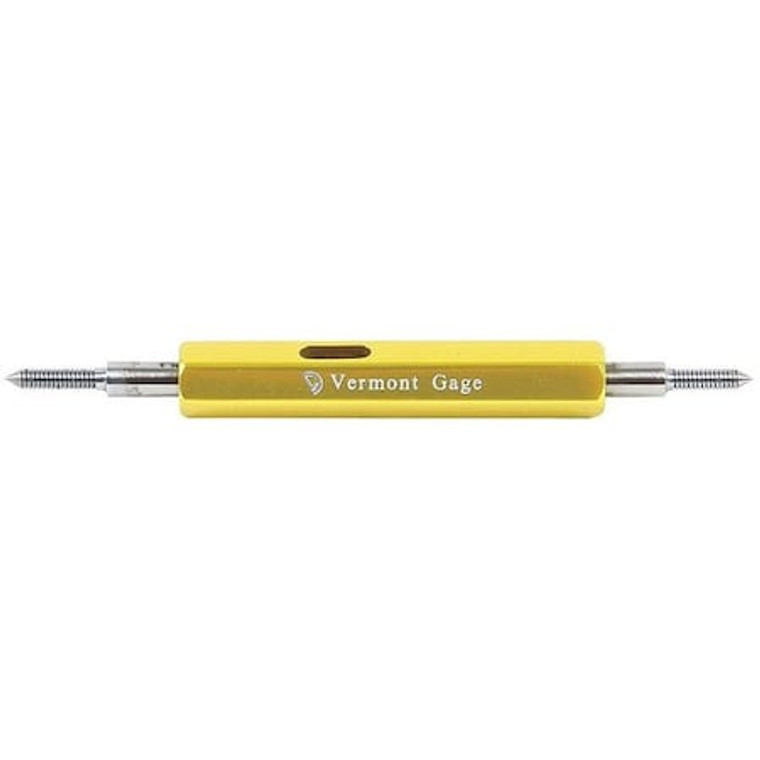

Go/No Go Plug Gage Assy, M2.0-0.40 6H - 302104030

Go/No Go Plug Gage Assy, M2.0-0.40 6H - 302104030

Vermont Gage
SKU:
302104030
|
UPC:
662631340438
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly, Dimension Type Metric, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 000, Thread Class 6H, Thread Size M2 x 0.40, Thread Type Metric, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - Go Member 6.40 mm, Gauge Length - No-Go Member 4.80 mm, Gauge Material Tool Steel, Handle Color Yellow, Handle Length 1 1/2 in, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability
Additional Information
Country of Origin:
United States
Item:
Taperlock Thread Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
6H
Material:
Tool Steel - Rc 70/72
Finish:
Chrome plated
Overall Length:
Go
Thread Size:
M2 X 0.4
Thread Type:
Metric
Tolerance:
Class X
Includes:
Certificate of Accuracy with NIST Traceable
Application:
For Calibration of Measuring Equipment or to Gage Parts Directly
Handle Length:
1-1/2";Meets/Exceeds=ASME B1.16M"
Pitch Diameter - Go Member:
1.74 mm
Gauge Material:
Tool Steel
Included Certification:
Certificate of Accuracy with NIST Traceability
Gauge Length - Go Member:
6.40 mm
Thread Direction:
Right Hand
Gauge Type:
Go/No-Go (Plus/Minus)
Gauge Finish:
Chrome Plated
Thread Class:
6H
Handle Color:
Yellow
Hardness:
RC 70-72
Included Handle:
Taperlock 000
Standards:
ASME B1.16M
Dimension Type:
Metric
Gauge Length - No-Go Member:
4.80 mm
Handle Design:
Double End
Tolerance Class:
X
Pitch Diameter - No-Go Member:
1.83 mm
Package Quantity:
1
