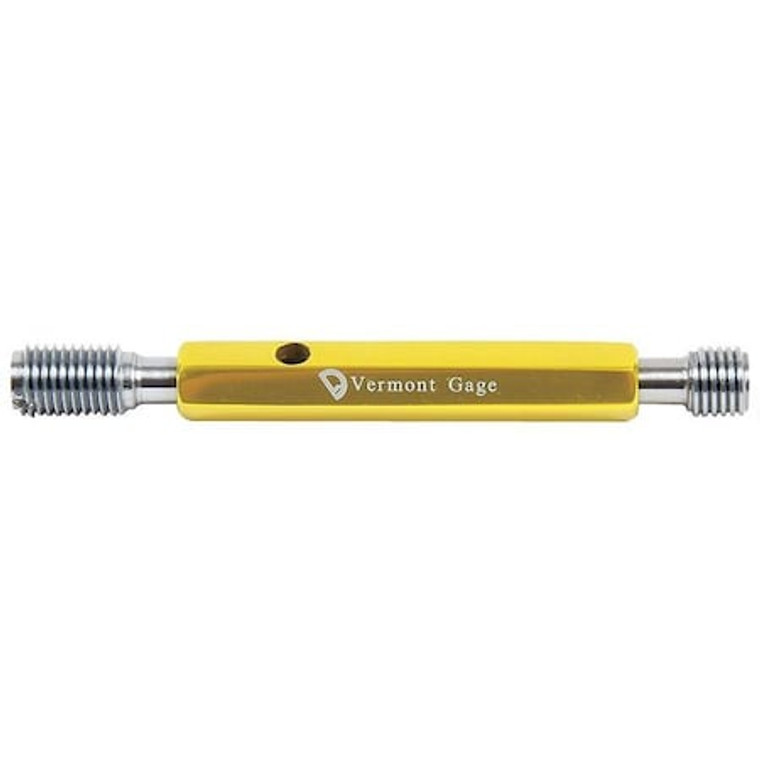

Go/No Go Plug Gage Assy, M12.0-1.25 6H - 302128530

Go/No Go Plug Gage Assy, M12.0-1.25 6H - 302128530

Vermont Gage
SKU:
302128530
|
UPC:
662631342883
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly, Dimension Type Metric, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 2, Thread Class 6H, Thread Size M12 x 1.25, Thread Type Metric, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - Go Member 19.00 mm, Gauge Length - No-Go Member 9.50 mm, Gauge Material Tool Steel, Handle Color Yellow, Handle Length 3 in, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability
Additional Information
Country of Origin:
United States
Item:
Taperlock Thread Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
6H
Material:
Tool Steel - Rc 70/72
Finish:
Chrome Plated
Overall Length:
Go
Thread Size:
M12 X 1.25
Thread Type:
Metric
Tolerance:
Class X
Meets/Exceeds:
ASME B1.16M
Handle Length:
3";Includes=Certificate of Accuracy with NIST Traceable"
Application:
For Calibration of Measuring Equipment or to Gage Parts Directly
Dimension Type:
Metric
Standards:
ASME B1.16M
Handle Design:
Double End
Tolerance Class:
X
Handle Color:
Yellow
Included Handle:
Taperlock 2
Hardness:
RC 70-72
Thread Direction:
Right Hand
Included Certification:
Certificate of Accuracy with NIST Traceability
Gauge Type:
Go/No-Go (Plus/Minus)
Gauge Finish:
Chrome Plated
Pitch Diameter - No-Go Member:
11.37 mm
Gauge Material:
Tool Steel
Gauge Length - Go Member:
19.00 mm
Gauge Length - No-Go Member:
9.50 mm
Pitch Diameter - Go Member:
11.19 mm
Thread Class:
6H
Package Quantity:
1
