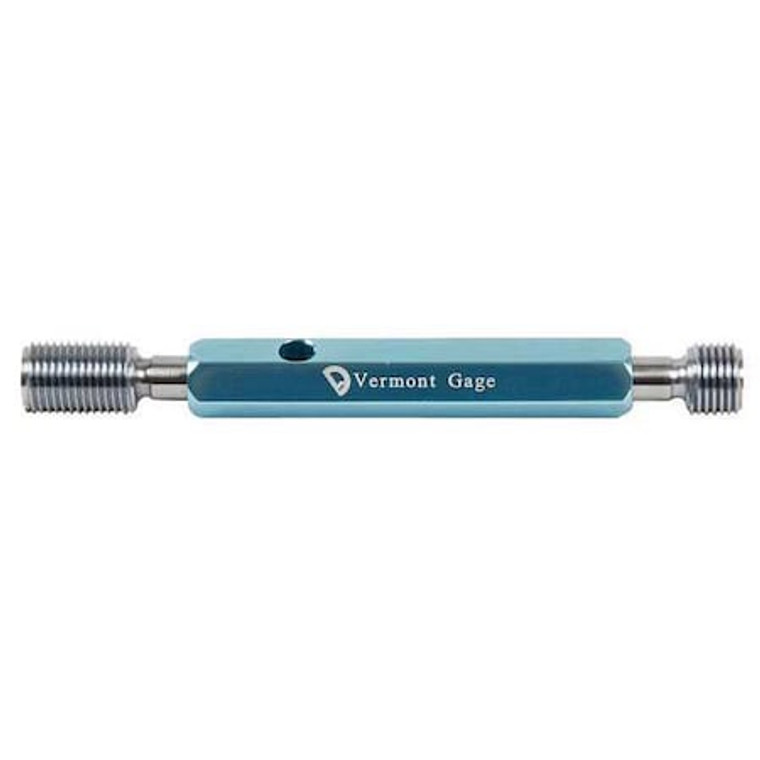

Go/No Go Plug Gage Assy, 7/16-28 UNEF 2B - 301138540

Go/No Go Plug Gage Assy, 7/16-28 UNEF 2B - 301138540

Vermont Gage
SKU:
301138540
|
UPC:
662631307745
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Threaded Plug Gauge Assembly, Dimension Type Inch, Gauge Type Go/No-Go (Plus/Minus), Handle Design Double End, Included Handle Taperlock 2, Thread Class 2B, Thread Size 7/16 In.-28, Thread Type UNEF, Tolerance Class X, Gauge Finish Chrome Plated, Gauge Length - Go Member 3/4 in, Gauge Length - No-Go Member 3/8 in, Gauge Material Tool Steel, Handle Color Blue, Handle Length 3 in, Hardness RC 70-72, Included Certification Certificate of Accuracy with NIST Traceability
Additional Information
Country of Origin:
United States
Item:
Taperlock Plug Gage
Type:
Go/NoGo (Plus/Minus)
Class:
2B
Material:
Tool Steel
Finish:
Chrome Plated 70/72 Rc
Overall Length:
Go
Thread Size:
7/16-28"
Thread Type:
UNEF
Tolerance:
Class X
Includes:
Certificate of Accuracy with NIST Traceable
Meets/Exceeds:
ANSI B1.2
Handle Length:
3";Application=For Calibration of Measuring Equipment or to Gage Parts Directly"
Standards:
ASME B1.2
Included Certification:
Certificate of Accuracy with NIST Traceability
Included Handle:
Taperlock 2
Handle Color:
Blue
Hardness:
RC 70-72
Thread Class:
2B
Gauge Length - No-Go Member:
3/8 in
Gauge Finish:
Chrome Plated
Gauge Material:
Tool Steel
Thread Direction:
Right Hand
Pitch Diameter - No-Go Member:
0.4189 in
Gauge Type:
Go/No-Go (Plus/Minus)
Gauge Length - Go Member:
3/4 in
Pitch Diameter - Go Member:
0.4143 in
Tolerance Class:
X
Dimension Type:
Inch
Handle Design:
Double End
Package Quantity:
1
