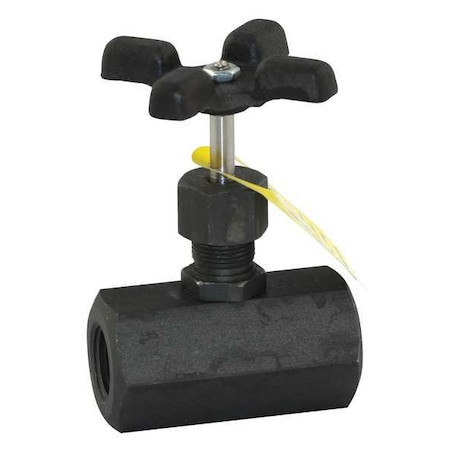

Globe Valve, 1/2 In., FNPT, 100 Deg F - 60B20324

Globe Valve, 1/2 In., FNPT, 100 Deg F - 60B20324

Apollo Valves
SKU:
60B20324
|
UPC:
670750764691
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Globe Valve, Pipe Size - Valves 1/2 in, Connection Type - Valves FNPT x FNPT, Shape Angle, Body Material - Valves Carbon Steel, Media - Valves Air, Fluid, Gas, Valve Stem Design Rising, Valve Handle Design Cross, Max. Fluid Temp. - Valves 100 Degrees F, Max. Air Pressure 10,000 psig @ 600 Degrees F, Max. Fluid Pressure - Valves 10,000 psi, Max. Steam Pressure - Valves Not Rated, Inlet to Outlet Length - Valves 2 3/4 in, Top of Handle to Inlet Center - Valves 3 13/32 in
Additional Information
Country of Origin:
United States
Item - Globe Valves:
Globe Valve
Connection Type - Valves:
FNPT x FNPT
Pipe Size - Valves:
1/2";Shape - Globe Valves=Angle"
Body Material - Valves:
Carbon Steel
Valve Stem Design:
Rising
Valve Handle Design:
Cross
Max. Fluid Temp. - Valves:
100 Degrees F
Compliance:
NACE MR0175(ED 2000)&MR0103(2012)
Standards:
MSS SP-99 & SP-105, NACE MR0175(ED 2000)&MR0103(2012)
Max. Steam Pressure - Valves:
Not Rated
Body Material:
ASTMA108 Carbon Steel
Wedge Material:
316 Stainless Steel
Handle Material:
Malleable Iron
Inlet to Outlet Length - Valves:
2 3/4 in
Item:
Angle Globe Valve
Max. Water Pressure:
10,000 psi
Stem Material:
Stainless Steel
Handle Type:
Cross
Connection Type:
FNPT
Top of Handle to Inlet Center - Valves:
3 13/32 in
Seal Material:
Graphite
Pipe Size:
1/2";Bonnet Style=Hub"
Inlet to Outlet Length:
2-3/4";Max. Air Temp.=-50 Degrees to 1000 Degrees F"
Max. Fluid Pressure - Valves:
10,000 psi
Valve Stem Type:
Rising
Top of Handle to Inlet Center:
3-13/32";Max. Air Pressure=10,000 psig @ 600 Degrees F"
Stem Type:
Rising
Valve Structure:
Angle
Shape:
Angle
Manufacturer Warranty:
5 yr
Globe Valve Type:
Angle
Operating Temperature - Maximum:
100 Degrees F
Operating Temperature - Minimum:
-50 Degrees F
Overall Length:
2 in
Disc Material:
316 Stainless Steel
Handle Diameter:
Not Applicable
Connection Type - Side 1:
NPT
ANSI Flange Class:
Not Applicable
Coefficient of Volume (Cv):
0.8
Maximum Pressure - Steam:
Not Rated
Connection Type - Side 2:
NPT
For Media:
Air, Fluids, Gas
Connection Size - Side 2:
1/2 in
Connection Size - Side 1:
1/2 in
NSF Certifications for Food and Drinking Water:
Not Applicable
Handle Height:
3.41 in
Nominal Valve Size:
1/2 in
Maximum Pressure - Operating:
10,000 psig
Connection Gender - Side 1:
Female
Number of Flange Bolt Holes:
Not Applicable
Connection Gender - Side 2:
Female
Bonnet Material:
Carbon Steel
Package Quantity:
1
