Dayton

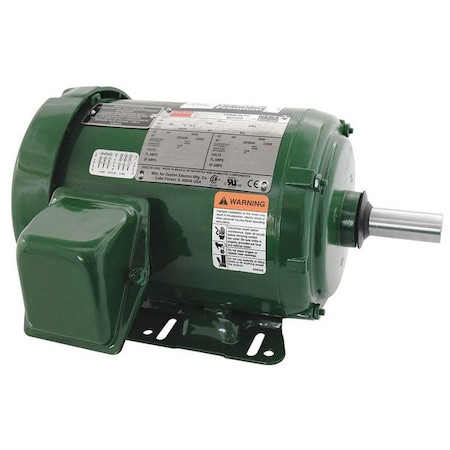

General Purpose Farm Duty Motor, 3-Phase, 2 HP, 230/460V AC, 1,750 Nameplate RPM, 143-5T/56HZ Frame - 35Z918
General Purpose Farm Duty Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.7/2.8 A, 143-5T/56HZ Frame, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
- Country of Origin:
- Mexico
- Item:
- General Purpose Farm Duty Motor
- Motor Design:
- 3-Phase
- Phase:
- Three
- HP:
- 2
- RPM Range:
- 1,701-1,800
- Voltage:
- 230/460V AC
- Frame:
- 143-5T/56HZ
- Motor Service Factor:
- 1.25
- Motor Thermal Protection:
- None
- Motor Enclosure Design:
- Totally Enclosed Fan-Cooled
- Nameplate RPM:
- 1,750
- Motor Application:
- Farm Duty
- Motor Frame Material:
- Rolled Steel
- Motor Mounting Position:
- Horizontal
- Motor Mounting Type:
- Rigid Base
- Motor Shaft Design:
- Keyed
- Motor Sub Application:
- General Purpose Farm
- Motor Shaft Rotation:
- CW/CCW
- Standards:
- CSA Certified (258525), UL Recognized (E47479)
- Full Load Amps:
- 5.7/2.8 A
- Duty:
- Continuous
- Shaft Length:
- 2 1/4 in
- Length Less Shaft:
- 10 3/4 in
- Ins. Class:
- F
- Overall Length:
- 13 in
- Motor Efficiency Group:
- NEMA Premium Efficient
- Motor Bearings:
- Ball
- Hz:
- 60/50 Hz
- Item - Farm Duty Motors:
- General Purpose Farm Duty Motor
- Max. Ambient Temperature:
- 40 Degrees C
- Frame Material:
- Rolled steel
- Nominal Efficiency:
- 86.5 %
- Includes:
- Shaft Slinger, Gasketed Conduit Box, Shaft Key
- Finish:
- Dayton Gray
- Shaft Dia.:
- 7/8 in
- Voltage Compatibility:
- 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
- No. of Speeds:
- 1
- Max. Ambient Temp.:
- 40 Degrees C
- Duty Cycle:
- Continuous
- Application:
- Farm Duty
- Package Quantity:
- 1
-
-
