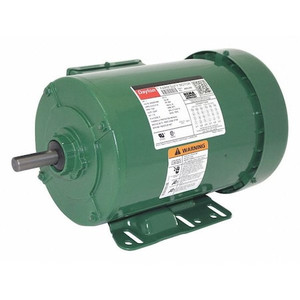

General Purpose Farm Duty Motor, 3-Phase, 1 1/2 HP, 208-230/460V AC, 1,745 Nameplate RPM, 56 Frame - 48ZJ99

General Purpose Farm Duty Motor, 3-Phase, 1 1/2 HP, 208-230/460V AC, 1,745 Nameplate RPM, 56 Frame - 48ZJ99

Dayton
SKU:
48ZJ99
|
UPC:
190735905258
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
General Purpose Farm Duty Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,745, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.5-4.5/2.2 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle
Additional Information
Country of Origin:
Mexico
Item:
General Purpose Farm Duty Motor
Motor Design:
3-Phase
Phase:
Three
HP:
1 1/2
RPM Range:
1,701-1,800
Voltage:
208-230/460V AC
Frame:
56
Motor Service Factor:
1.15
Motor Thermal Protection:
Manual
Motor Enclosure Design:
Totally Enclosed Fan-Cooled
Nameplate RPM:
1,745
Motor Application:
Farm Duty
Motor Frame Material:
Rolled Steel
Motor Mounting Position:
All Angle
Motor Mounting Type:
Rigid Base
Motor Shaft Design:
Keyed
Motor Sub Application:
General Purpose Farm
Motor Shaft Rotation:
CW/CCW
Standards:
CSA Certified (258501), UL Recognized (E37403)
Duty:
Continuous
Length Less Shaft:
11 1/2 in
Shaft Dia.:
5/8 in
Motor Bearings:
Ball
Hz:
60 Hz
Shaft Length:
1 7/8 in
Overall Length:
13 3/8 in
Item - Farm Duty Motors:
General Purpose Farm Duty Motor
Full Load Amps:
4.5-4.5/2.2 A
Nominal Efficiency:
85.5 %
Max. Ambient Temperature:
40 Degrees C
Finish:
Epoxy
Ins. Class:
F
Includes:
Shaft Key, Gasketed Conduit Box, Shaft Slinger
Voltage Compatibility:
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Duty Cycle:
Continuous
Max. Ambient Temp.:
40 Degrees C
No. of Speeds:
1
Package Quantity:
1
