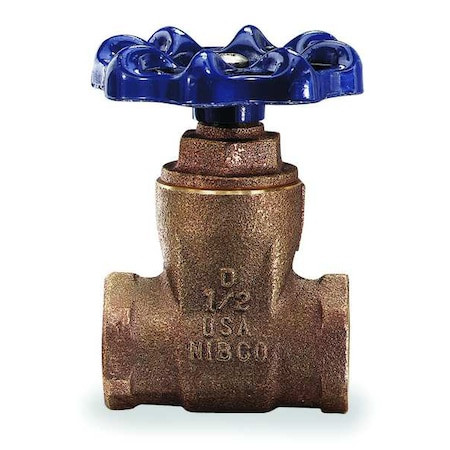

Gate Valve, 1-1/2 In., FNPT, Bronze - T29 1 1/2

Gate Valve, 1-1/2 In., FNPT, Bronze - T29 1 1/2

Nibco
SKU:
T29 1 1/2
|
UPC:
39923083173
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Gate Valve, For Media Water, Body Material Bronze, Nominal Valve Size 1 1/2 in, ANSI Flange Class Not Applicable, Maximum Pressure - Operating 200 psi, Maximum Pressure - Steam 200 psi, Stem Type Non-Rising, Stem Material Bronze, Wedge Style Solid, Wedge Material Cast Brass, Seat Material Brass, Seal Material EPDM, Handle Type Wheel, Bonnet Material Bronze, Bonnet Style Screw-In, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT, Connection Gender - Side 2 Female
Additional Information
Country of Origin:
United States
Pipe Size:
1 1/2";Connection Type=FNPT"
Body Material:
Bronze
Item:
Gate Valve
Max. Water Pressure - CWP:
200 psi
Max. Cold Working Pressure - CWP:
200 psi
Top of Handle to Inlet Center:
4-3/16";Stem Material=Silicon Bronze"
Body Material - Valves:
Bronze
Valve Stem Type:
Non-Rising
Wedge Material:
Bronze
Valve Max. Fluid Temp.:
200 Degrees F
Standards:
ASTM B-584
Pipe Size - Valves:
1 1/2";Handle Material=Aluminum"
Inlet to Outlet Length:
2-3/4";Handle Type=Hand Wheel"
Stem Type:
Non-Rising
Bonnet Style:
Screw-In
Seal Material:
EPDM
Overall Length:
2.81 in
Seat Material:
Brass
Number of Flange Bolt Holes:
Not Applicable
Bonnet Material:
Bronze
Connection Gender - Side 2:
Female
Connection Type - Side 2:
NPT
Nominal Valve Size:
1 1/2 in
Wedge Style:
Solid
Maximum Pressure - Steam:
200 psi
Handle Height:
4.14 in
Connection Type - Side 1:
NPT
Connection Gender - Side 1:
Female
For Media:
Water
Connection Size - Side 2:
1 1/2 in
Connection Size - Side 1:
1 1/2 in
ANSI Flange Class:
Not Applicable
Operating Temperature - Minimum:
-20 Degrees F
Maximum Pressure - Operating:
200 psi
Operating Temperature - Maximum:
200 Degrees F
NSF Certifications for Food and Drinking Water:
Not Applicable
Handle Length:
Not Applicable
Package Quantity:
1
