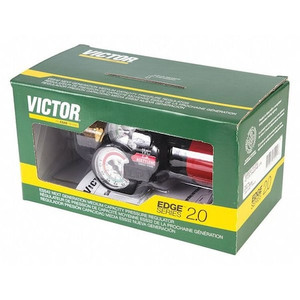

Gas Regulator Single Stage, CGA 300, Use With: Acetylene - 0781-3603

Name: Gas Regulator Single Stage, CGA 300, Use With: Acetylene - 0781-3603
Brand: Victor
SKU: 0781-3603
Price: 295.54 USD
Availability: InStock

Victor

SKU:

0781-3603

UPC:

716352599597

Availability:

In Stock

(No reviews yet)

Gas Regulator, Maximum Gauge Outlet Pressure 400 psig, Number of Stages Single Stage, Compatible Gas Type Acetylene, Control Type Knob, Inlet Connection Type NGO, Inlet Connection Gender Male, Inlet Connection Size 0.965 In.-14, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Stainless Steel, CGA Number CGA 300, Application General Purpose, Body Diameter 3.64 in

Country of Origin:: Mexico
Stages:: Single Stage
Regulator Application:: General Purpose
Supply Pressure Gauge:: 400 psi
Gauges Delivery Pressure:: 30 psi
Item:: Gas Regulator
Overall Length:: 4-3/4";Application=General Purpose"
Regulator Capacity:: Premium Duty
Delivery:: 15 psi
Regulator Supply Type:: Cylinder
Diaphragm Material:: Stainless Steel
Delivery Pressure Range:: 2 to 15 psi
Body Material:: Brass
Standards:: ETL Listed, UL252
Duty Rating:: Heavy Duty
Features:: Consistent Pressure and Flow Delivery, Fully Enclosed, Highly Visible Modular Gauges for More Clarity With Robust Metal Gauge Guard, High Resistance to Oxygen Related Fires, Robust Seat Gives Optimum Performance, Slam Knob Absorbs Impact in the Event
Overall Height:: 4 in
Outlet Pressure (Maximum):: 15 psig
Overall Depth:: 4 in
Outlet Connection Size:: 9/16-18"
Compatible Gas Type:: Acetylene
Overall Width:: 6 in
Outlet Thread Direction:: Left Hand
Control Type:: Knob
Inlet Thread Direction:: Right Hand
Outlet Connection Gender:: Male
Inlet Connection Type:: NGO
Number of Stages:: Single Stage
Inlet Pressure (Maximum):: 3,000 psig
Inlet Connection Size:: 0.965-14"
Inlet Connection Gender:: Male
Body Diameter:: 3.64 in
Maximum Gauge Outlet Pressure:: 400 psig
Outlet Pressure (Minimum):: 2 psig
Gauge Diameter:: 2 1/2 in
Regulator Series:: Edge 2.0
Outlet Connection Type:: UNF
CGA Number:: CGA 300
Flow Coefficient:: 0.285
Dedupe with CGA Number and Inlet Connection Size:: CGA 300
Package Quantity:: 1
