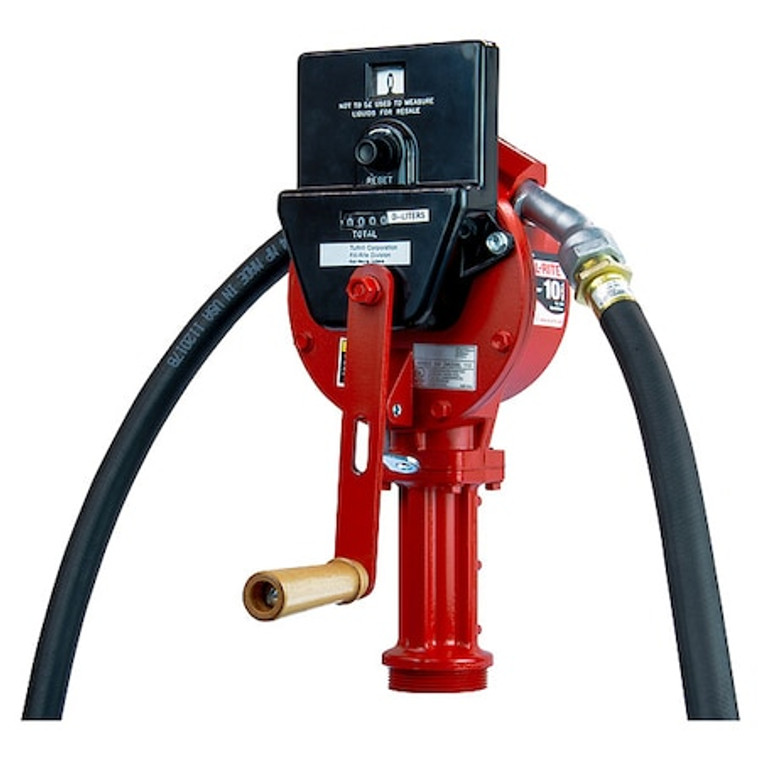

Fuel Transfer Pump, 38 Liters/100 Revolutions Max. Flow Rate , Cast Iron, 1 in NPT Inlet - FR112CL

Fuel Transfer Pump, 38 Liters/100 Revolutions Max. Flow Rate , Cast Iron, 1 in NPT Inlet - FR112CL

Fill-Rite
SKU:
FR112CL
|
UPC:
89404002742
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Fuel Transfer Pump, Max. Outlet Pressure 38 psi, Pump Connection OD 2 1/8 in, Self-Priming Yes, Metered Yes, Hose Length 8 ft, Includes Discharge Hose Yes, Features Anti-Siphon Valve, Can Be Used to Pump In Reverse Direction, Rotary Hand Pump, Seal Material Carbon, For Use With Diesel/Fuel Oil, Adapter Connection Type MNPT, For Container Type Drum, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout No, Nozzle Operation Manual
Additional Information
Country of Origin:
United States
Housing Material:
Cast Iron
GPM:
38 Liters/100 Revolutions
Inlet Size:
1 in NPT
Seal Material:
Carbon
Pump Design:
Rotary Vane
Self-Priming:
Yes
Seal Type:
Mechanical
Max. Viscosity:
50 SUS
Item:
Fuel Transfer Pump
Nozzle Type:
Manual
Overall Length:
6 1/4 in
Overall Height:
16 1/2 in
Standards:
UL Listed
Overall Width:
9 1/2 in
Features:
Anti-Siphon Valve, Can Be Used to Pump In Reverse Direction, Rotary Hand Pump
Pressure Range:
38 psi
Hose Dia.:
3/4 in
Transfer Pump Application:
Agriculture, Construction, Farming
For Use With:
Diesel/Fuel Oil
Compatible Fluids:
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Hose Length:
8 ft
Includes:
Hose, Liter Counter, Spout Nozzle, Suction Pipe
Pump Mount Size:
2 in
Outlet Size:
3/4 in NPT
Metered:
Yes
Bypass Valve:
No
Nozzle Material:
Aluminum
Manufacturers Warranty Length:
2 yr
Suction Tube Length:
20 in to 34 1/2 in
Agency Compliance:
UL Listed
Duty Cycle:
Continuous
Wetted Materials:
301 Stainless Steel, Buna-N, Cast Iron, Zinc Plated Steel
Action Type:
Rotary
Housing Material - Pumps:
Aluminum
Max. Flow Rate:
10 gal per 100 revolutions
Includes Suction Tube:
Yes
Max. Head Pressure:
50 psi
For Container Type:
Drum
Pump Connection OD:
2 1/8 in
Nozzle Operation:
Manual
Compatible Chemicals:
Biodiesel, Diesel Fuel, E15, Gasoline, Kerosene
For Container Size:
55 gal
For Media Type:
Biodiesel, Diesel Fuel, E15, Gasoline, Kerosene
Hose Outside Dia.:
7/8 in
Spout Material:
Not Applicable
Bung Connection Dia.:
2 in
Max. Fluid Temp.:
120 Degrees F
Mount Type:
Bung
Includes Spout:
No
Hose Inside Dia.:
5/8 in
Suction Tube Material:
Steel
Max. Outlet Pressure:
38 psi
Includes Bung Adapter:
Yes
Adapter Connection Type:
MNPT
Includes Discharge Hose:
Yes
Includes Nozzle:
Yes
Package Quantity:
1
