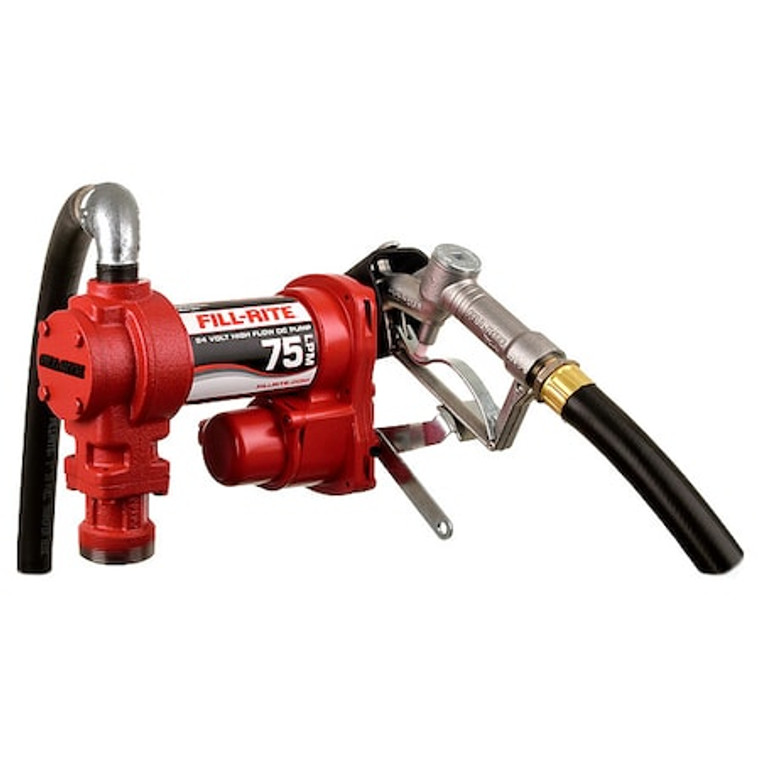

Fuel Transfer Pump, 24V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet - FR4410H

Fuel Transfer Pump, 24V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet - FR4410H

Fill-Rite
SKU:
FR4410H
|
UPC:
89404223222
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Fuel Transfer Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 24V DC, Hose Length 12 ft, Suction Tube Length 33 3/4 in, Cord Length 18 ft, Runs Dry Yes, Nozzle Operation Manual, Thermal Protection Yes, Power Source Electric, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits, Discharge Connection Type NPT
Additional Information
Country of Origin:
United States
Voltage:
24V DC
Application:
Fuel Transfer Pump Designed for Gasoline, Diesel, Biodiesel up to B20, E15, Kerosene and Mineral Spirits
HP:
1/4
Housing Material:
Cast Iron
GPM:
20 gpm
Inlet Size:
1 in NPT
Seal Material:
Carbon
RPM:
2600
Pump Design:
Rotary Vane
Self-Priming:
Yes
Seal Type:
O-ring
Max. Viscosity:
39.5 SUS
Item:
Fuel Transfer Pump
For Use With:
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Hose Dia.:
1 in
Pump Mount Size:
2 in
Features:
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Standards:
UL Listed
Hose Length:
12 ft
Power Cord Length:
18 ft
Nozzle Material:
Aluminum
Transfer Pump Application:
Agriculture, Construction, Farming
Nozzle Type:
Manual
Overall Length:
11 in
Includes:
Battery, Cable, Discharge Hose, Nozzle
Overall Width:
13 in
Pressure Range:
0 psi to 16 psi
Suction Tube Length:
33 3/4 in
Bypass Valve:
Yes
Duty Cycle:
30 Minutes On/30 Minutes Off
Bearing Type:
Sealed Ball
Outlet Size:
1 in NPT
Compatible Fluids:
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Manufacturers Warranty Length:
2 yr
Overall Height:
8 in
Metered:
No
Agency Compliance:
cULus
Wetted Materials:
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Cord Length:
18 ft
Motor Type:
Permanent Magnet
Max. Head - Pumps:
37 ft
Housing Material - Pumps:
Cast Iron
Motor RPM:
2,600 RPM
Max. Outlet Pressure:
16 psi
Mount Type:
Bung
Nozzle Fluid Compatibility:
Diesel
Compatible Chemicals:
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Max. Head Pressure:
16 psi
Full Load Amps:
18.0 A
Meter Unit Of Measure:
Not Applicable
Filter Included:
Not Applicable
Includes Nozzle:
Yes
Runs Dry:
Yes
For Media Type:
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Hose Outside Dia.:
1 in
Rated Voltage:
24V DC
Power Source:
Electric
For Container Size:
275 gal
Nozzle Operation:
Manual
Meter Type:
Not Applicable
Pump Connection Type:
NPT
Includes Discharge Hose:
Yes
Thermal Protection:
Yes
Motor HP:
1/4 hp
Includes Suction Tube:
Yes
Max. Flow Rate:
20 gpm
Discharge Connection Type:
NPT
Package Quantity:
1
