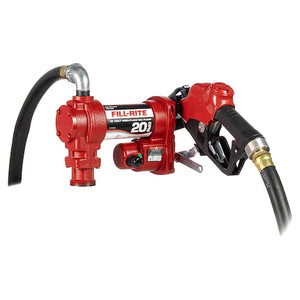

Fuel Transfer Pump, 12V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet - FR4210HARC

Fuel Transfer Pump, 12V DC, 20 gpm Max. Flow Rate , 1/4 HP, Cast Iron, 1 in NPT Inlet - FR4210HARC

Fill-Rite
SKU:
FR4210HARC
|
UPC:
89404223178
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Fuel Transfer Pump, Max. Head Pressure 16 psi, Max. Outlet Pressure 16 psi, For Use With Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline, Rated Voltage 12V DC, Hose Length 20 ft, Suction Tube Length 33 3/4 in, Cord Length 18 ft, Runs Dry Yes, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Electric, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits, Discharge Connection Type NPT
Additional Information
Country of Origin:
United States
Voltage:
12V DC
Application:
Ideal for Use in Harsh Winter Climates
HP:
1/4
Housing Material:
Cast Iron
GPM:
20 gpm
Inlet Size:
1 in NPT
Seal Material:
Carbon
RPM:
2600
Pump Design:
Rotary Vane
Self-Priming:
Yes
Seal Type:
Mechanical
Max. Viscosity:
39.5 SUS
Item:
Fuel Transfer Pump
Pump Mount Size:
2 in
Nozzle Material:
Aluminum
Bypass Valve:
Yes
Metered:
No
Standards:
UL Listed
Suction Tube Length:
33 3/4 in
Includes:
Cable, Discharge Hose, Nozzle
Power Cord Length:
18 ft
For Use With:
Bio-Diesel up to B20 E15. Kerosene, Diesel, Gasoline
Overall Width:
13 in
Features:
Iron Rotor with Carbon Rotary Vanes, Pressure Relief Valve, Self Priming
Overall Length:
11 in
Nozzle Type:
Automatic
Hose Dia.:
1 in
Duty Cycle:
30 Minutes On/30 Minutes Off
Bearing Type:
Sealed Ball
Outlet Size:
1 in NPT
Manufacturers Warranty Length:
2 yr
Compatible Fluids:
Biodiesel up to B20, Diesel, E15, Gasoline, Kerosene
Hose Length:
20 ft
Pressure Range:
0 psi to 16 psi
Transfer Pump Application:
Agriculture, Construction, Farming
Overall Height:
8 in
Wetted Materials:
Buna-N, Ceramic, Cork, Stainless Steel, Steel, Thermoset, Viton
Motor Type:
Permanent Magnet
Cord Length:
18 ft
Agency Compliance:
cULus
Housing Material - Pumps:
Cast Iron
Motor RPM:
2,600 RPM
Max. Head - Pumps:
37 ft
For Media Type:
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Power Source:
Electric
Discharge Connection Type:
NPT
Motor HP:
1/4 hp
Compatible Chemicals:
Biodiesel, Diesel, Ethanol, Gasoline, Kerosene, Mineral Spirits
Meter Unit Of Measure:
Not Applicable
Rated Voltage:
12V DC
Includes Suction Tube:
Yes
Mount Type:
Bung
Meter Type:
Not Applicable
Max. Flow Rate:
20 gpm
Max. Outlet Pressure:
16 psi
Nozzle Fluid Compatibility:
Diesel
Max. Head Pressure:
16 psi
Thermal Protection:
Yes
Filter Included:
Not Applicable
Nozzle Operation:
Automatic
For Container Size:
275 gal
Pump Connection Type:
NPT
Includes Nozzle:
Yes
Includes Discharge Hose:
Yes
Full Load Amps:
28.0 A
Runs Dry:
Yes
Hose Outside Dia.:
1 in
Package Quantity:
1
