Fuel Transfer Pump, 12V DC, 10 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in MNPT Inlet - FR1614
Fill-RiteLog in for pricing
(No reviews yet)
Write a Review
Fill-Rite

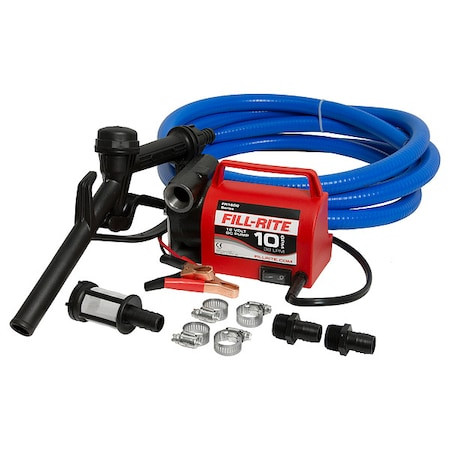

Fuel Transfer Pump, 12V DC, 10 gpm Max. Flow Rate , 1/5 HP, Cast Iron, 3/4 in MNPT Inlet - FR1614
Fuel Transfer Pump, Max. Head Pressure 50 psi, Max. Outlet Pressure 16 psi, Rated Voltage 12V DC, Suction Tube OD 3/4 in, Hose Length 8 ft, Suction Tube Length Yes, Cord Length 6 1/2 ft, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Manual, Frequency (Hz) Not Applicable, Power Source Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes, Compatible Chemicals Anti-Freeze, Diesel, Discharge Connection Type Hose Barb, Features Portable,, Includes Nozzle Yes
- Country of Origin:
- United States
- Voltage:
- 12V DC
- HP:
- 1/5
- Housing Material:
- Cast Iron
- GPM:
- 10 gpm
- Inlet Size:
- 3/4 in MNPT
- Seal Material:
- Buna-N
- RPM:
- 3800
- Pump Design:
- Rotary Vane
- Self-Priming:
- Yes
- Seal Type:
- Lip
- Max. Viscosity:
- 50 SUS
- Item:
- Fuel Transfer Pump
- Nozzle Type:
- Manual
- Overall Length:
- 7 1/8 in
- Outlet Size:
- 1 in FNPT
- Includes:
- Cable, Discharge Hose, Nozzle
- Bearing Type:
- Ball
- Suction Tube Length:
- Yes
- Bypass Valve:
- Internal
- Overall Height:
- 3 3/4 in
- Pressure Range:
- 0 psi to 12 psi
- Manufacturers Warranty Length:
- 1 yr
- Transfer Pump Application:
- Construction, Emergency Response, Farming, Generators, Marine, Refueling Fleet Vehicles
- Hose Dia.:
- 3/4 in
- Power Cord Length:
- 6 1/2 ft
- Nozzle Material:
- Polypropylene
- Features:
- Portable,
- Metered:
- No
- Amps AC:
- 20
- Compatible Fluids:
- Antifreeze, Diesel
- Hose Length:
- 8 ft
- Overall Width:
- 5 1/8 in
- Duty Cycle:
- 30 Minutes On/30 Minutes Off
- Motor Type:
- Permanent Magnet
- Motor Enclosure:
- Non-Explosion Proof
- Adapter Material:
- Cast Iron
- Agency Compliance:
- CE
- Wetted Materials:
- Carbon Steel, Cast Iron, HNBR
- Cord Length:
- 6 1/2 ft
- Max. Head - Pumps:
- 36 ft
- Motor RPM:
- 1,725 RPM
- Housing Material - Pumps:
- Cast Iron
- Height Above Container:
- 5 in
- Max. Fluid Temp.:
- 105 Degrees F
- Discharge Connection Type:
- Hose Barb
- Spout Material:
- Not Applicable
- Hose Cover Material:
- PVC
- Hose Tube Material:
- PVC
- Number of Phases:
- Not Applicable
- Hose Outside Dia.:
- 3/4 in
- Nozzle Fluid Compatibility:
- Diesel
- Motor HP:
- 1/5 hp
- Runs Dry:
- Yes
- Includes Spout:
- No
- Food Grade:
- No
- Includes Bung Adapter:
- No
- Max. Flow Rate:
- 10 gpm
- Max. Outlet Pressure:
- 16 psi
- Meter Unit Of Measure:
- Not Applicable
- Filter Included:
- Not Applicable
- Variable Speed:
- No
- Frequency (Hz):
- Not Applicable
- Power Source:
- Electric
- Adapter Connection Type:
- F Hose Barb
- For Media Type:
- Anti-Freeze, Diesel
- For Container Size:
- 200 gal
- Full Load Amps:
- 17.0 A
- Rated Voltage:
- 12V DC
- Mount Type:
- Foot
- Meter Type:
- Not Applicable
- Min. Fluid Temp.:
- -40 Degrees F
- Diesel Exhaust Fluid Compatible:
- No
- Suction Tube Material:
- Not Applicable
- Max. Head Pressure:
- 50 psi
- Includes Nozzle:
- Yes
- Compatible Chemicals:
- Anti-Freeze, Diesel
- Includes Suction Tube:
- No
- Suction Tube OD:
- 3/4 in
- Includes Discharge Hose:
- Yes
- Nozzle Operation:
- Manual
- Explosion Proof:
- No
- Package Quantity:
- 1
-
-
