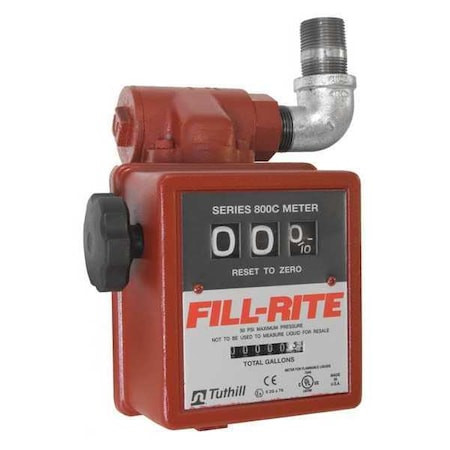

Flowmeter, 50 PSI, 20 GPM, 1 in., Mechanical - 806C

Flowmeter, 50 PSI, 20 GPM, 1 in., Mechanical - 806C

Fill-Rite
SKU:
806C
|
UPC:
89404110324
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Flowmeter, Liquid, GPM Max. 20, Max. Pressure (PSI) 50, Connection Size (In.) 1 NPT, Max. Temp. (F) 130, Length (In.) 9-1/2, Width (In.) 7-1/2, Height (In.) 8, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 20 gpm, Display Mechanical, Resetable Cumulative Totalizer 99.9 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1 In.
Additional Information
Country of Origin:
United States
Item:
Mechanical Flowmeter
Type:
Liquid
Housing Material:
Aluminum
For Pipe Size:
1 in
Connection Size:
1 in
Flow Material:
B20, Diesel, E15, Gasoline, Kerosene
Connection Type:
FNPT
Max. Pressure:
50 psi
Wetted Materials:
Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity:
50 SUS
Flow Range:
6 to 20 gpm
Fluid Temp. Range:
-40 Degrees to 140 Degrees F
Fitting:
Brass
Thread:
NPT
Length:
9 1/2 in
Application:
Agriculture, Construction, Industrial, Mining, Municipalities
Master Totalizer:
999,999 gal
Display:
Mechanical
Connection Size (In.):
1 NPT
Width (In.):
7-1/2";Width=7 1/2 in"
Height (In.):
8
Max. Viscosity (SSU):
50
Max. Pressure (PSI):
50
O-Ring:
Buna
Height:
8 in
Agency Compliance:
UL Listed
Accuracy (%):
+/-1
Flow Range @ GPH:
300 to 1200
Pressure Drop - 50% Flow (PSI):
1.0 psi
Manufacturers Warranty Length:
2 yr
Flow Range @ GPM/LPM:
6 to 20 / 23 to 76
Chamber Material:
Polypropylene
Max. Temp. (F):
130
Length (In.):
9-1/2";Pressure Drop - 100% Flow (PSI)=8.0 psi"
GPM Max.:
20 gpm
Flow Range (GPM):
6 to 20
Seal Material:
Buna-N
Resetable Cumulative Totalizer:
99.9 gal
Display Type:
Mechanical
Shaft Material:
Stainless Steel
Standards:
CE Certified, cULus Listed
Output Type:
Standard Frequency Pulse
Product Type:
Mechanical Fuel Transfer Meter
Unit Of Measure:
Gallons
Flowmeter Type:
Paddlewheel
Flow Rate - Maximum:
20 gpm
Voltage - Maximum:
Not Applicable
Includes Flow Rate Adjustment Knob:
Yes
Pulse Rate:
10 pulses/gal
Rotor Material:
PPS
Media Temperature - Minimum:
-40 Degrees F
Operating Pressure - Maximum:
50 psi
O-Ring Material:
Buna-N
Accuracy:
+/-1%
Overall Length:
4.8 in
Compatible Flow Material:
B20, Diesel, E15, Gasoline, Kerosene
Media Temperature - Maximum:
140 Degrees F
Mounting Orientation:
Universal
Overall Width:
7.5 in
Includes Pressure Gauge:
No
Includes Totalizer:
Yes
Manufacturer Warranty Length:
2 yr
Wetted Material:
Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Overall Height:
8 in
Viscosity - Maximum:
50 SUS
Flow Rate - Minimum:
5 gpm
Package Quantity:
1
