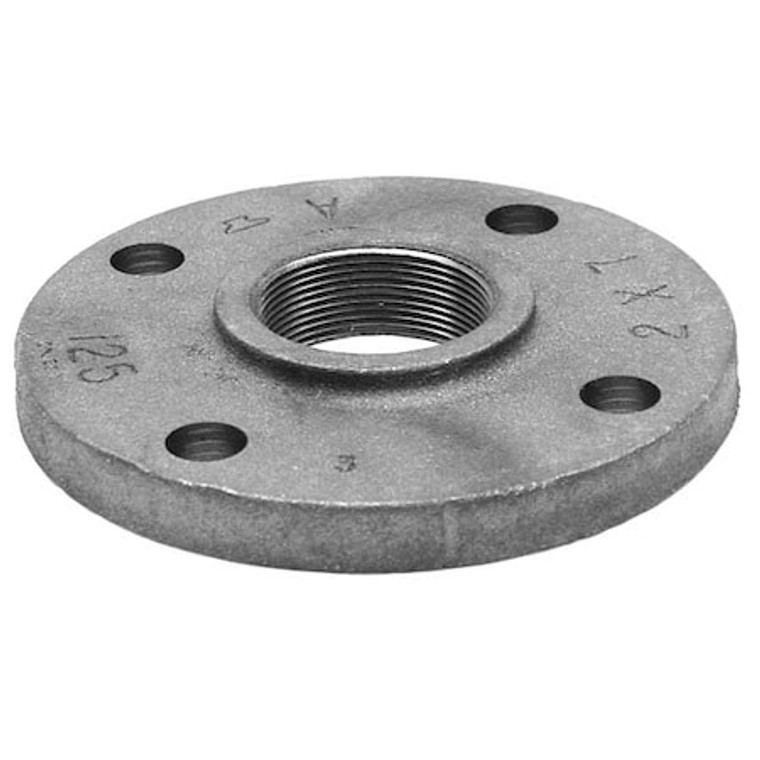

Flanged x FNPT, Cast Iron Reducing Companion Threaded Flange, Class 125 - 0308007905

Flanged x FNPT, Cast Iron Reducing Companion Threaded Flange, Class 125 - 0308007905

Anvil
SKU:
0308007905
|
UPC:
690291021541
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Reducing Companion Flange, 1 1/2 in Nominal Pipe Size, Flanged x FNPT, 7 1/2 in Flange Outside Diameter, 7 1/2 in Overall Length, Cast Iron, Class Class 125, 175 psi Maximum Operating Pressure, -20 Degrees to 150 Degrees F, Number of Bolt Holes 4
Additional Information
Country of Origin:
United States
Pipe Fitting Material:
Cast Iron
Specific Fitting Shape:
Reducing Companion Flange
Fitting Schedule/Class:
Class 125
Pipe Size - Pipe Fitting:
1-1/2 in
Basic Pipe Fitting Material:
Metal
Fitting Connection Type:
Flanged x FNPT
Basic Pipe Fitting Shape:
Flange
Standards:
UL
Item:
Reducing Companion Threaded Flange
Max. Pressure:
175 psi@-20 Degrees to 150 Degrees F
Saturated Steam Pressure:
125 psi
Pipe Fitting Schedule/Class:
Class 125
Number of Holes:
4
Temp. Range:
-20 Degrees to 150 Degrees F
Pipe Size (Fittings):
1-1/2";Pipe Fitting Connection Type=Flanged x FNPT"
Outside Dia.:
7-1/2";Specific Pipe Fitting Shape=Reducing Companion Flange"
Maximum Operating Pressure:
175 psi
Flange Outside Diameter:
7 1/2 in
Nominal Pipe Size:
1 1/2 in
Overall Length:
7 1/2 in
Application:
Fire Protection, Non-Potable Water
Number of Bolt Holes:
4
Class:
Class 125
Type:
Faced & Drilled Threaded
Package Quantity:
1
