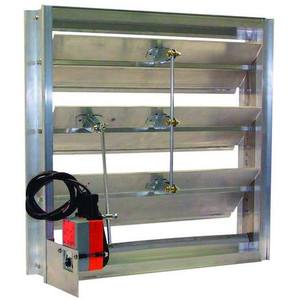

Flanged Frame Motorized Damper, 100-240V - 5NKK5

Flanged Frame Motorized Damper, 100-240V - 5NKK5

Dayton
SKU:
5NKK5
|
UPC:
190735347522
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
28.8 In.H-W 14.5 In.L Squ Mtrzd Contrl Dampr, For Nominal Duct Diameter 30 in, Damper Application Motorized, Number of Panels 1, Overall Height 29 3/4 in, Overall Length 14 1/2 in, Rough Opening Shape Square, For Duct Shape Square, Overall Width 29 3/4 in, Frame Material Thickness 14 ga, Blade Material Galvanized Steel, Maximum Air Pressure 4 in wg, Rough Opening Length 30 in, Rough Opening Width 30 in, Maximum Air Velocity 3500 fpm, Nameplate Voltage 100/240V AC
Additional Information
Country of Origin:
United States
Item:
28.8H-W 14.5"L Squ Mtrzd Contrl Dampr"
Voltage:
100 to 240
Overall Square:
29 3/4 in
Sq. Opening Required:
30 in
Free Area:
5.1 sq ft
Frame Less Flange:
27.75 sq in
Motor Bracket Extension:
11 1/2 in
Hz:
50/60
Flange Width:
Not Applicable
Mounting Position:
Horizontal; Vertical
Number of Panels:
1
Operation:
Power Open, Spring Return
Material:
Extruded Aluminum
For Use With:
Duct Work In Volume Control Intake or Exhaust Applications
Overall Length:
14 1/2 in
Standards:
NEC; OSHA
Overall Width:
29 3/4 in
Overall Height:
29 3/4 in
Jamb Seal Material:
Stainless Steel
Phase:
1
Bushing Material:
Brass
Series:
GMD-SP
Maximum Air Velocity:
3500 fpm
Closure Velocity Rating:
3,500 fpm
Blade Seal Material:
TPV
Airflow Direction:
Horizontal; Vertical
Rough Opening Length:
30 in
Frequency:
50/60 Hz
Flange Type:
Hat Channel
Switch Action:
Normally Open
Maximum Air Pressure:
4 in wg
Damper Application:
Motorized
Damper Finish:
Mill Finish
Electrical Connection:
Hardwired
Maximum Temperature Rating:
122 Degrees F
Fusible Link Temperature:
122 Degrees F
Frame Material:
Aluminum
Rough Opening Shape:
Square
Includes Motor:
Yes
Axle Material:
Plated Steel
Nameplate Voltage:
100/240V AC
For Duct Shape:
Square
Blade Orientation:
Parallel Blades
Blade Material Thickness:
16 ga
Blade Material:
Galvanized Steel
Rough Opening Width:
30 in
For Nominal Duct Diameter:
30 in
Frame Material Thickness:
14 ga
Blade Type:
Flat Blade
Package Quantity:
1
