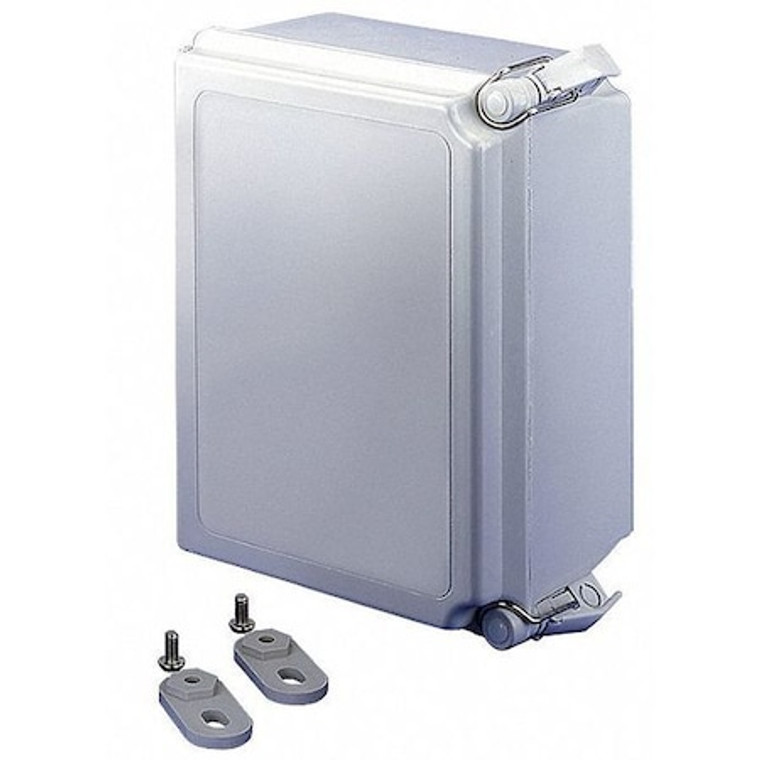

Fiberglass Electrical Enclosures, 14 in H, 8 in D, 12 in W, NEMA 4X, Hinged - A14128CHSCFG

Fiberglass Electrical Enclosures, 14 in H, 8 in D, 12 in W, NEMA 4X, Hinged - A14128CHSCFG

Nvent Hoffman
SKU:
A14128CHSCFG
|
UPC:
783510302979
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Enclosure NEMA Rating 12, 13, 4, 4X, Material of Enclosure Compression-Molded Fiberglass, 12 in, Hinged Enclosure Cover Type, Solid / Clear Cover Solid, Closure Method Quick Release Latch, Finish Smooth Matte, Color Light Gray, Depth 8 in, Enclosure Cover Features Screw Cover, Features Data Pocket, Polyurethane Gasket, Height 14 in, Interior Panel 32FR80, IP Rating IP66, Wall Mounting, Series A48
Additional Information
Country of Origin:
United States
Item:
Electrical Enclosures
Nominal Width:
12 in
Nominal Height:
14 in
Nominal Depth:
8 in
Enclosure NEMA Rating:
NEMA 4X
Material of Enclosure:
Fiberglass
Closure Method:
Captive Screws with Quick Release
Enclosure Cover Type:
Hinged
Knockouts:
No
Metallic / Non-Metallic:
Non-Metallic
Color:
Light Gray
Finish:
Brushed
Mounting:
Wall
Solid / Clear Cover:
Solid
Enclosure Cover Features:
Screw Cover
Gasket:
Polyurethane
Series:
A48
Standards:
cUL Listed Per CSA C22.2 No 94, Enclosure Flammability Evaluated Per UL 508A, File No E61997, IEC 60529, Mounting Brackets Required to Meet UL/CSA External Mounting Requirements, NEMA/EEMAC Type 4, 4X, 12, 13, UL 508A Listed, Window Flammability Eval
Features:
Data Pocket
Interior Panel:
32FR80
IP Rating:
IP66
Enclosure Material:
Fiberglass
Weight:
9
Hazardous Location Specification:
Not Applicable
NEMA Enclosure Rating:
12, 13, 4, 4X
Includes Knockouts:
Knockouts Not Included
Gasket Material:
Polyurethane
Cover Style:
Solid
Cover Closure Type:
Hinged
Environment - MERCH:
Washdown and Corrosion Resistant
Body Material Thickness:
0.16 in
Compatible Panel Model Number:
A14P12AL
Package Quantity:
1
