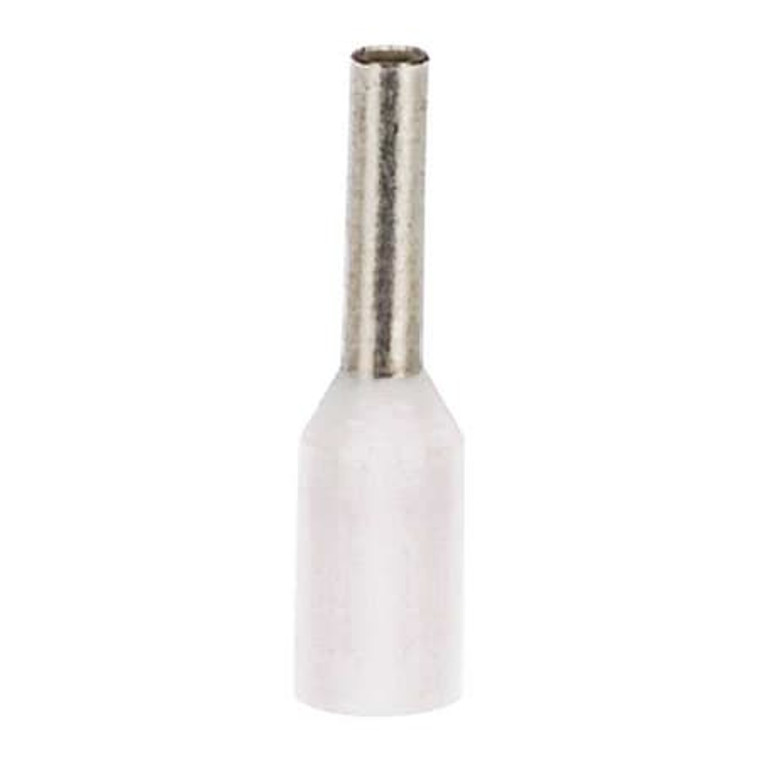

Ferrule, 20 AWG, PP, 3/8in., PK500 - FSD75-6-D

Ferrule, 20 AWG, PP, 3/8in., PK500 - FSD75-6-D

Panduit
SKU:
FSD75-6-D
|
UPC:
74983762446
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.06 in, Ferrule Material Copper, Insertion Length 3/8 in, Insulation Color White, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 20 AWG, Maximum Wire Size 20 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228 Part 4, Barrel Diameter 0.09 in, Barrel Finish Tin Plated, Barrel Length 0.25 in, Barrel Material Copper
Additional Information
Country of Origin:
Germany
Item:
Ferrule
Wire Range:
20 AWG
Insulation Type:
Self-Insulated
Insulation Color:
White
Insertion Length:
3/8 in
Overall Length:
0.49 in
Max. Temp.:
221 Degrees F
Features:
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Standards:
CSA C22.2 No. 291-14, DIN 46228 Part 4
Connection Material:
Tinned
For Use With:
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Finish:
Tin-Plated
Color:
White
Material:
Copper
Length:
0.5";Special Features=Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD"
Strip Length:
3/8 in
Maximum Operating Temperature:
221 Degrees F
Contact Finish:
Tin
Ferrule Material:
Copper
Compatible with Series:
CT
Compatible Manufacturer Model Number:
CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Barrel Finish:
Tin Plated
Barrel Diameter:
0.09 in
Termination Style:
Crimp
Maximum Wire Size:
20 AWG
Contact Material:
Copper
Insulation Material:
Polypropylene
Compatible with Product Type:
Terminal Block
Minimum Wire Size:
20 AWG
Barrel Material:
Copper
Barrel Length:
0.25 in
Maximum Conductors:
1
Ferrule Diameter:
0.06 in
Inside Dia.:
0.04 in
Product Type:
Electric Wire Ferrule
Product Color:
White
Environmentally Friendly:
Yes
Product Name:
Electric Wire Ferrule
Product Material:
Copper
Maximum Operating Temperature (°C):
105
Maximum Operating Temperature (°F):
221
Inside Diameter (mm):
1.1
Pin Length (In.):
0.24
Note:
UL with 20 AWG wire only
UL Temperature Rating (°C):
105
Wire Strip Length (In.):
0.37
Packaging Type:
Bag
Inside Diameter (In.):
0.04
Wire Strip Length (mm):
9.5
Color Code:
White
Maximum Metric Conductor Size (mm²):
0.5
Copper Conductor Size (AWG):
#22 - #20
Maximum Copper Conductor Size (AWG):
#20
Flammability Rating:
UL94-HB
Overall Length (In.):
0.49
Base Material:
Copper
Standards Met:
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F (with 20 AWG wire only)
Ferrule Type:
Single Wire Standard
Overall Length (mm):
12
Pin Length (mm):
6
Sub Brand:
Pan-Term®
Maximum Wire Insulation Diameter (mm):
2.5
Cover Material:
Polypropylene
Maximum Wire Insulation Diameter (In.):
0.09
Minimum Copper Conductor Size (AWG):
#22 - #20
Finish/Coating:
Tin-Plated
CSA Temperature Rating (°C):
105
Maximum Metric Conductor Size (mm²):
0.5
Maximum Operating Temperature (°C):
105
UL Temperature Rating (°C):
105
Maximum Operating Temperature (°F):
221
CSA Temperature Rating (°C):
105
Package Quantity:
500
