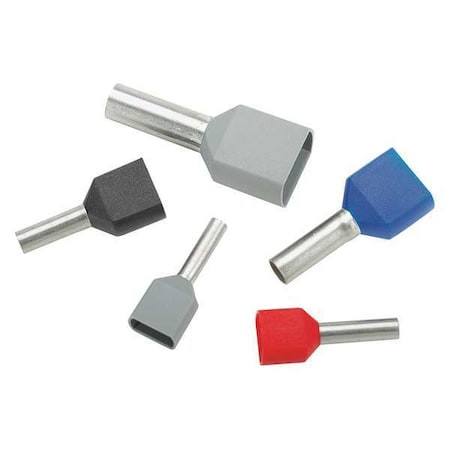

Ferrule, 18 AWG, PP, 9/16in., PK500 - FTD77-10-D

Ferrule, 18 AWG, PP, 9/16in., PK500 - FTD77-10-D

Panduit
SKU:
FTD77-10-D
|
UPC:
74983763092
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.09 in, Ferrule Material Copper, Insertion Length 9/16 in, Insulation Color Red, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 18 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F, Barrel Diameter 0.11 in, Barrel Finish Tin Plated, Barrel Length 0.28 in, Barrel Material Copper
Additional Information
Country of Origin:
Germany
Item:
Ferrule
Wire Range:
18 AWG
Insulation Type:
Self-Insulated
Insulation Color:
Red
Insertion Length:
9/16 in
Overall Length:
0.67 in
Max. Temp.:
221 Degrees F
Features:
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Standards:
CSA C22.2 No. 291-14, DIN 46228, UL 486F
Connection Material:
Tinned
Insulation Material:
Polypropylene
Maximum Wire Size:
18 AWG
Contact Material:
Copper
Barrel Material:
Copper
Maximum Operating Temperature:
221 Degrees F
Termination Style:
Crimp
Compatible with Series:
CT
Contact Finish:
Tin
Minimum Wire Size:
18 AWG
Barrel Finish:
Tin Plated
Compatible with Product Type:
Terminal Block
Strip Length:
9/16 in
Compatible Manufacturer Model Number:
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Barrel Length:
0.28 in
Special Features:
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FTD
Barrel Diameter:
0.11 in
Ferrule Material:
Copper
Maximum Conductors:
2
Minimum Operating Temperature:
-60 Degrees F
Ferrule Diameter:
0.09 in
Color:
Red
Finish:
Tin-Plated
Inside Dia.:
0.08 in
Material:
Copper
Environmentally Friendly:
Yes
Product Name:
Electric Wire Ferrule
Product Color:
Red
Product Type:
Electric Wire Ferrule
Product Material:
Polypropylene
Length:
0.7";Inside Diameter (mm)=2.1"
Base Material:
Copper
Pin Length (mm):
10
Inside Diameter (In.):
0.08
Minimum Operating Temperature (°C):
-54
Pin Length (In.):
0.39
Outer Diameter (mm):
2.35
Wire Strip Length (In.):
45185
Maximum Metric Conductor Size (mm²):
1
Standards Met:
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Minimum Operating Temperature (°F):
-60
For Use With:
CT-1002, CT-1003, CT-1090,CT-1123, CT-1160, CT-1170, CT-2300/ST WITH CD-090, CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Wire Strip Length (mm):
14
Overall Length (mm):
17
Sub Brand:
Pan-Term®
Overall Length (In.):
0.67
Maximum Operating Temperature (°C):
105
UL Temperature Rating (°C):
105
Maximum Wire Insulation Diameter (mm):
2.8
Maximum Operating Temperature (°F):
221
CSA Temperature Rating (°C):
105
Cover Material:
Polypropylene
Finish/Coating:
Tin-Plated
Maximum Wire Insulation Diameter (In.):
0.11
Ferrule Type:
Twin Wire
Outer Diameter (In.):
0.9
Flammability Rating:
UL94-HB
Color Code:
Red
Minimum Metric Conductor Size (mm²):
1
Packaging Type:
Bag
CSA Temperature Rating (°C):
105
Minimum Metric Conductor Size (mm²):
1
UL Temperature Rating (°C):
105
Minimum Operating Temperature (°F):
-60
Minimum Operating Temperature (°C):
-54
Maximum Operating Temperature (°C):
105
Maximum Metric Conductor Size (mm²):
1
Maximum Operating Temperature (°F):
221
Package Quantity:
500
