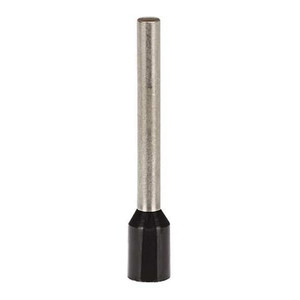

Ferrule, 16 AWG, PP, 15/32in., PK500 - FSD78-8-D

Ferrule, 16 AWG, PP, 15/32in., PK500 - FSD78-8-D

Panduit
SKU:
FSD78-8-D
|
UPC:
74983762552
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Ferrule, Contact Finish Tin, Contact Material Copper, Ferrule Diameter 0.08 in, Ferrule Material Copper, Insertion Length 15/32 in, Insulation Color Black, Insulation Material Polypropylene, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Standards CSA C22.2 No. 291-14, DIN 46228, UL 486F, Barrel Diameter 0.12 in, Barrel Finish Tin Plated, Barrel Length 0.26 in, Barrel Material Copper
Additional Information
Country of Origin:
Germany
Item:
Ferrule
Wire Range:
16 AWG
Insulation Type:
Self-Insulated
Insulation Color:
Black
Insertion Length:
15/32 in
Overall Length:
0.57 in
Max. Temp.:
221 Degrees F
Standards:
CSA C22.2 No. 291-14, DIN 46228, UL 486F
Connection Material:
Tinned
Features:
15/32 in Wire Strip Length, Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
For Use With:
CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CTFP-25, CTFP-40, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Color:
Black
Finish:
Tin-Plated
Length:
0.6";Material=Copper"
Strip Length:
15/32 in
Barrel Material:
Copper
Barrel Finish:
Tin Plated
Maximum Operating Temperature:
221 Degrees F
Maximum Conductors:
1
Contact Finish:
Tin
Barrel Diameter:
0.12 in
Compatible Manufacturer Model Number:
CP-991, CT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH), CTFP-25, CTFP-40
Maximum Wire Size:
16 AWG
Minimum Wire Size:
16 AWG
Minimum Operating Temperature:
-60 Degrees F
Barrel Length:
0.26 in
Contact Material:
Copper
Compatible with Series:
CT
Termination Style:
Crimp
Insulation Material:
Polypropylene
Special Features:
Funnel Entry, Seamless Barrel, Suitable for Limited Space Applications, Type FSD
Ferrule Material:
Copper
Ferrule Diameter:
0.08 in
Compatible with Product Type:
Terminal Block
Inside Dia.:
0.07 in
Product Type:
Electric Wire Ferrule
Product Material:
Polypropylene
Environmentally Friendly:
Yes
Product Color:
Black
Product Name:
Electric Wire Ferrule
Standards Met:
DIN 46228, CSA C22.2 No. 291-14, UL 486F, cULus 486F
Maximum Operating Temperature (°F):
221
Minimum Operating Temperature (°F):
-60
Pin Length (mm):
8
Maximum Metric Conductor Size (mm²):
1.5
Copper Conductor Size (AWG):
#16
Cover Material:
Polypropylene
Overall Length (mm):
14.5
Minimum Operating Temperature (°C):
-54
Inside Diameter (In.):
0.07
CSA Temperature Rating (°C):
105
Flammability Rating:
UL94-HB
Overall Length (In.):
0.57
Maximum Wire Insulation Diameter (mm):
3
Minimum Copper Conductor Size (AWG):
#16
Minimum Metric Conductor Size (mm²):
1.5
Sub Brand:
Pan-Term®
Wire Strip Length (In.):
15/32
Inside Diameter (mm):
1.8
Maximum Operating Temperature (°C):
105
Pin Length (In.):
0.31
Ferrule Type:
Single Wire Standard
Maximum Wire Insulation Diameter (In.):
0.12
Packaging Type:
Bag
Finish/Coating:
Tin-Plated
Maximum Copper Conductor Size (AWG):
#16
Base Material:
Copper
UL Temperature Rating (°C):
105
Wire Strip Length (mm):
11.9
Color Code:
Black
Package Quantity:
500
