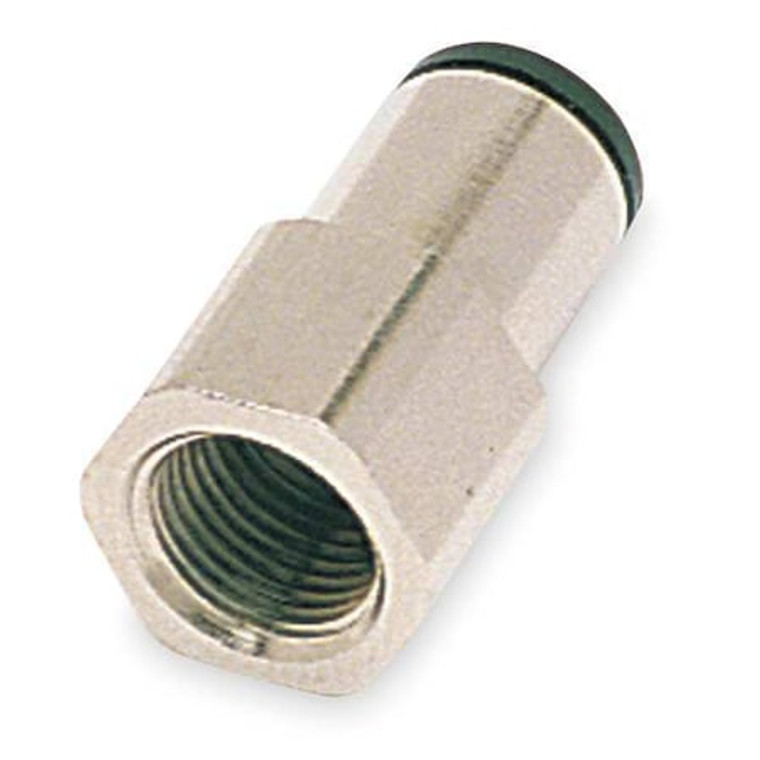

Female Adapter, 1/4 in Tube Size, Nylon, Black, 10 PK - 3014 56 14

Name: Female Adapter, 1/4 in Tube Size, Nylon, Black, 10 PK - 3014 56 14
Brand: Legris
SKU: 3014 56 14
Price: 100.61 USD
Availability: InStock

Legris

SKU:

3014 56 14

UPC:

820099200408

Availability:

In Stock

(No reviews yet)

Female Adapter, Application Air, Cutting Fluids, Inert Gases, Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type FNPT, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Material Nylon, Fitting Thread Size 1/4, Color Black, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 175 Degrees F, Overall Length 1 5/32 in, Specific Fitting Shape Straight Adapter

Country of Origin:: Mexico
Item:: Female Adapter
Specific Fitting Shape:: Straight Adapter
Tube Size:: 1/4 in
Pipe Size - Pipe Fitting:: 1/4 in
Max. Pressure:: 290 psi
Connection Type:: Push-to-Connect x FNPT
Basic Material:: Metal
Pipe Size (Fittings):: 1/4";Basic Pipe Fitting Shape=Adapter"
Fittings Sub-Category:: Adapters
Specific Pipe Fitting Shape:: Adapter
Temp. Range:: -4 Degrees to 175 Degrees F
Pipe Fitting Connection Type:: FNPT x Tube
Body Material:: Nickel Plated Brass
Pipe Size:: 1/4 in
Basic Pipe Fitting Material:: Metal
Hex Size:: 16 mm
Color:: Black
System of Measurement:: Imperial
Standards:: 2011/65/EC, DI
Application:: Air, Cutting Fluids, Inert Gases, Vacuum
Overall Length:: 1 5/32 in
Compatible Tube Material:: Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon
Fitting Side B Connection Type:: FNPT
Includes Pre-Applied Thread Sealant:: Yes
Fitting Side A Tube Outer Diameter:: 1/4 in
Fitting Side A Connection Type:: Push-to-Connect
Maximum Operating Temperature:: 175 Degrees F
Compatible Tube Hardness:: 95 Shore A
Fitting Material:: Nylon
Release Type:: Button
Vacuum Rating:: 28 inHg
Maximum Operating Pressure:: 290 psi
Fitting Side B Pipe Size:: 1/4 in
Minimum Operating Temperature:: 4 Degrees F
Fitting Thread Size:: 1/4
Resistance Properties:: Chemical-Resistant, Corrosion-Resistant
Package Quantity:: 10
