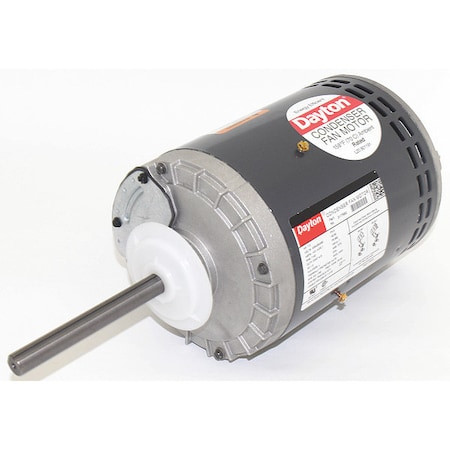

Fan Mtr, 1 HP, 1140,220-230/460 - 31TR60

Name: Fan Mtr, 1 HP, 1140,220-230/460 - 31TR60
Brand: Dayton
SKU: 31TR60
Price: 555.44 USD
Availability: InStock

Dayton

SKU:

31TR60

UPC:

190735255667

Availability:

In Stock

(No reviews yet)

Condenser Fan Motor, Motor Design 3-Phase, Phase Three, 1 HP, No. of Speeds 1, Voltage 208-230/460V AC, Motor Shaft Rotation CW/CCW, 56Z Frame, Motor Enclosure Design Open Air-Over, Band Motor Mounting Type, Motor Mounting Position Horizontal or Vertical Shaft Up, Shaft Dia. 5/8 in, Shaft Length 6 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 1,140, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 4.2-4.2/2.1 A, Ins. Class F, Motor Service Factor 1

Country of Origin:: Mexico
Item:: Condenser Fan Motor
Motor Design:: 3-Phase
Phase:: Three
HP:: 1
RPM Range:: 1,101-1,200
No. of Speeds:: 1
Voltage:: 208-230/460V AC
Motor Shaft Rotation:: CW/CCW
Frame:: 56Z
Motor Enclosure Design:: Open Air-Over
Motor Mounting Type:: Band
Motor Mounting Position:: Horizontal or Vertical Shaft Up
Shaft Dia.:: 5/8 in
Shaft Length:: 6 in
Motor Thermal Protection:: Auto
Max. Ambient Temp.:: 70 Degrees C
Nameplate RPM:: 1,140
Motor Application:: HVAC/R
Motor Sub Application:: Condenser Fan
Voltage Compatibility:: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Bearings:: Ball
Capacitor Required:: No
Ins. Class:: F
Features:: Inverter Duty, Quick Disconnect Design
Motor Service Factor:: 1
Standards:: CSA 258525, UL E47479
Lead Length:: 6 in
Overall Length:: 15 3/4 in
Application:: Condenser Fan
Stud Quantity:: 4
Motor Shaft Design:: Flat
Bolt Circle Dia.:: 5 7/8 in
Body Dia.:: 6 1/2 in
Mounting Stud Pattern:: 4 1/8 in x 4 1/8 in
Length Less Shaft:: 9 3/4 in
Nominal Efficiency:: 83.4 %
Hz:: 60 Hz
Full Load Amps:: 4.2-4.2/2.1 A
Duty:: Continuous
Stud Size:: #10-32
Duty Cycle:: Continuous
Inverter Rated:: Yes
Mounting:: Band
Package Quantity:: 1
