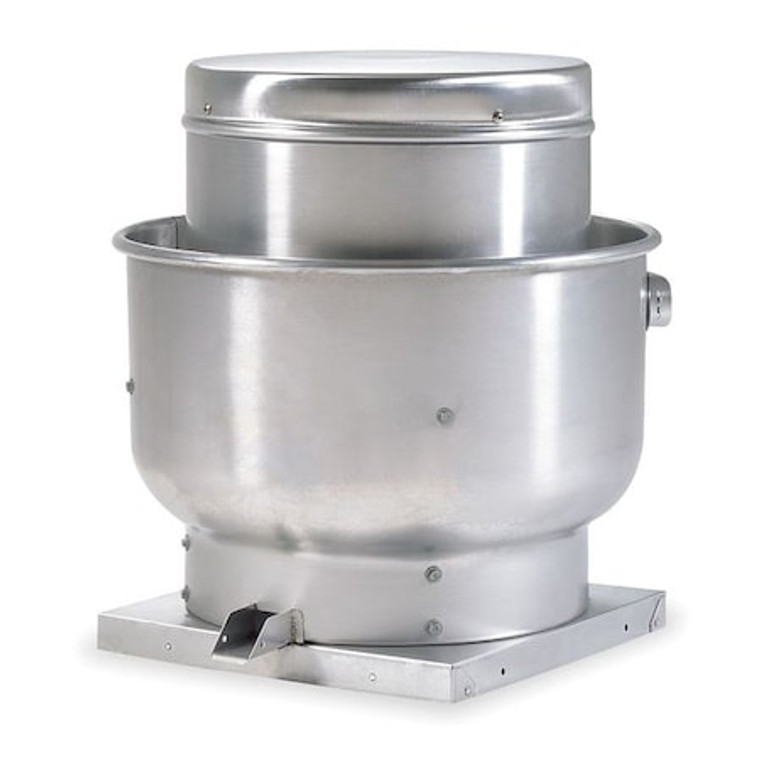

Exhaust Ventilator, 11 in., 115/208-230V - 7DF68

Exhaust Ventilator, 11 in., 115/208-230V - 7DF68

Dayton
SKU:
7DF68
|
UPC:
194484317782
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Belt Drive, For Air Type Kitchen Air, Base Diameter 19 3/4 in, Base Width Not Applicable, Base Length Not Applicable, Base Shape Round, Maximum Static Pressure 1/2 in wc, Exhaust Airflow @ 0.000 in SP 833 cfm, Nameplate Voltage 115/208-230V AC, Phase 1, Motor Horsepower 1/6 hp, Assembly Unassembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum
Additional Information
Country of Origin:
Multiple
Item - Roof Ventilators:
Upblast Ventilator
Drive Package With Motor Included:
Yes
Duty Rating - Roof Ventilators:
Standard
Drive Type - Roof Ventilators:
Belt Drive
Mounting Location - Roof Ventilators:
Roof, Wall
Number of Speeds:
1
Voltage - Roof Ventilators:
115V AC/208V AC/230V AC
Motor HP - Roof Ventilators:
1/6 hp
Base Size - Roof Ventilators:
19 3/4 in dia
CFM @ 0.000-In. SP:
833
Motor Voltage:
115/208/230
Dimension B:
24 7/8 in
Wheel Material:
Aluminum
CFM @ 0.125-In. SP:
754
Sones @ 0.250-In. SP @ 5 Ft.:
6.3
CFM @ 0.375-In. SP:
565
Phase:
1
Item:
Centrifugal Upblast Roof Exhaust Fan
Dimension C:
25 1/8 in
Recommended Damper Size (In.):
12 x 12
Mounting Location:
wall
Speed Controllable:
No
Bearing Type:
Sealed Pillow Block
Assembled/Unassembled:
Unassembled
Dimension D:
17 3/8 in
Drive Package Included:
Yes
Recommended Damper Stock No.:
4HX74
CFM @ 0.250-In. SP:
665
Standards:
AMCA Sound and Air, UL/cUL 762
Dimension A:
19 3/4 in
Wheel Dia.:
11 in
Housing Material:
Aluminum
Shaft Dia. Wheel End:
3/4 in
Drive Type:
Belt Drive
Sones @ 0.125-In. SP @ 5 Ft.:
7.0
Max. BHP:
0.07
CFM @ 0.500-In. SP:
408
RPM:
1140
Includes:
Drive Package, Mounting Plate, NEMA 1 Junction Box
Motor HP:
1/6
Base Square Size - Roof Ventilators:
19-3/4 dia."
Dimension E:
16 7/8 in
Max. Operating Amps:
3.6/1.6-1.8
Overall Height:
25 1/8 in
Base Length:
Not Applicable
Base Width:
Not Applicable
Motor Location:
Out of Airstream
Damper Size:
12 x 12 in
Motor Speed:
1,140 RPM
Spark Resistant Construction Type:
A
Housing Length:
24.9 in
Wheel Type:
Backward Inclined
Base Diameter:
19 3/4 in
Sound Level:
5.5 sones @ 0.500 in SP and 5 ft, 5.9 sones @ 0.375 in SP and 5 ft, 6.3 sones @ 0.250 in SP and 5 ft, 7.0 sones @ 0.125 in SP and 5 ft, 7.8 sones @ 0.000 in SP and 5 ft
Overall Diameter:
24 7/8 in
Frequency:
60 Hz
Safety Features:
Fully Rolled Windband
Housing Material Fabrication:
Spun
High-Efficiency Motor:
No
Brake Horsepower:
7/100 hp
Nameplate Voltage:
115/208-230V AC
For Air Type:
Kitchen Air
Application:
Industrial and Commercial Buildings, Restaurants, Schools
Maximum Inlet Air Temperature:
300 Degrees F
Exhaust Airflow @ 0.500 in SP:
408 cfm
Exhaust Airflow @ 0.250 in SP:
665 cfm
Base Shape:
Round
Motor Enclosure:
Open Dripproof
Housing Width:
24.9 in
Includes Drive Package:
Yes
For High-Static Pressure Applications:
No
Assembly:
Unassembled
Exhaust Airflow @ 0.000 in SP:
833 cfm
Exhaust Airflow @ 0.125 in SP:
754 cfm
Exhaust Airflow @ 0.375 in SP:
565 cfm
Maximum Static Pressure:
1/2 in wc
Propeller Shaft Diameter:
3/4 in
Resistance Properties:
Spark Resistant
Airflow @ 0.000 in SP:
833 cfm
Features:
Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design
Current:
3.6/1.6 to 1.8 A
Includes Motor:
Yes
Wheel Diameter:
11 in
Maximum Fan Speed:
1,140 RPM
Motor Horsepower:
1/6 hp
Package Quantity:
1
