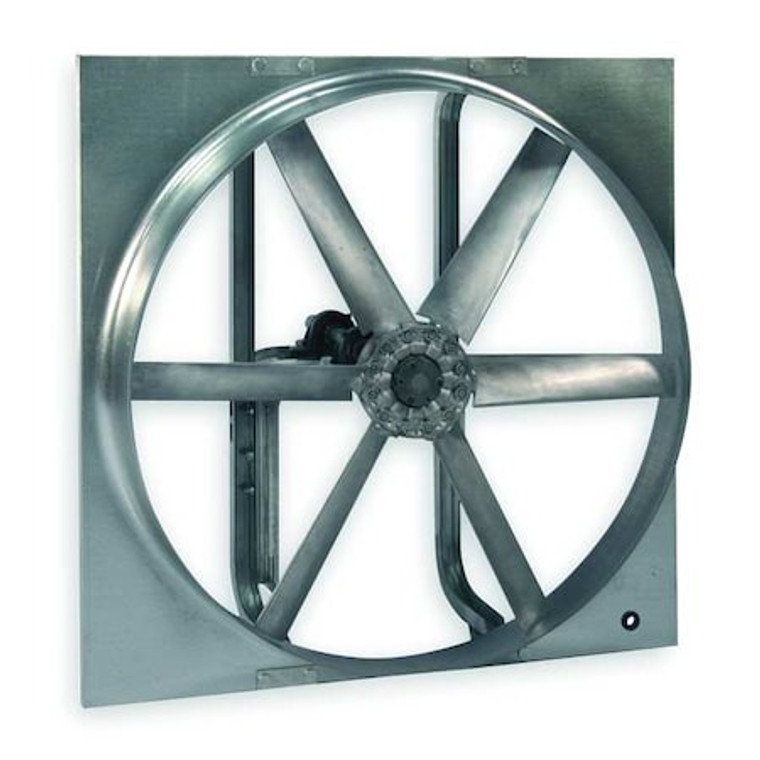

Exhaust/Supply Fan, 30 In Less Drive Pkg - 4YGA3
Exhaust/Supply Fan, Assembled Unassembled, Blade Diameter 30 in, Blade Material Aluminum, Frame Material Steel, For Maximum Motor Horsepower 3 hp, For Maximum Motor Speed 1,474 RPM, For Minimum Motor Horsepower 1/3 hp, For Minimum Motor Speed 714 RPM, Maximum Airflow 16,061 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 7,780 cfm, For Cut-Out Height 32 1/2 in, For Cut-Out Width 32 1/2 in, For Cut-Out Diameter 32 1/2 in, Guard Type None, Method of Construction Cast, Number of Blades 6
- Country of Origin:
- United States
- Exhaust/Supply Fan Item:
- Reversible Exhaust/Supply Fan
- Drive Package With Motor Included:
- No
- Blade Dia.:
- 30 in
- Type:
- Belt Drive Reversible
- Dimension B (In.):
- 21 1/2 in
- Shaft Dia. (In.):
- 1 in
- Dimension D (In.):
- 1 in
- Max. Depth (In.):
- 21 1/2 in
- Dimension F (In.):
- 30 3/8 in
- Max. Inlet Temp. (Deg. F):
- 104 Degrees F
- Dimension C (In.):
- 5 1/4 in
- Recommended Intake Guards:
- 1WBU4
- Propeller Material:
- Cast Aluminum
- Number of Blades:
- 6
- Max. Ambient Temp. (F):
- 104 Degrees F
- Mounting Position:
- Vertical
- Speed:
- 1
- Item:
- Exhaust/Supply Fan
- Height (In.):
- 34 in
- Frame Finish:
- Zinc-Plated
- Dimension E (In.):
- 16 1/4 in
- Width (In.):
- 34 in
- Dimension A (In.):
- 34 in
- Bearing Type:
- Regreasable Cast Pillow Block
- Drive Package Included:
- No
- Overall Height:
- 34 in
- Overall Width:
- 34 in
- Standards:
- C-UL Listed, UL Listed
- Flange Width:
- 34 in
- Shaft Diameter:
- 1 in
- Maximum Airflow:
- 16,061 cfm
- For Maximum Motor Speed:
- 1,474 RPM
- Frame Material:
- Steel
- Overall Depth:
- 21 1/2 in
- Blade Diameter:
- 30 in
- Blade Material:
- Aluminum
- For Cut-Out Height:
- 32 1/2 in
- Maximum Inlet Temperature:
- 104 Degrees F
- Includes Motor:
- No
- Maximum Static Pressure:
- 0.75 in wg
- Minimum Airflow:
- 7,780 cfm
- Manufacturer Warranty Length:
- 1 yr
- Venturi Diameter:
- 30 3/8 in
- Ventilation Type:
- Reversible
- For Minimum Motor Speed:
- 714 RPM
- Fan Style:
- Panel
- Overall Diameter:
- 1 in
- For Cut-Out Diameter:
- 32 1/2 in
- For Maximum Motor Horsepower:
- 3 hp
- For Minimum Motor Horsepower:
- 1/3 hp
- Mounting Orientation:
- Horizontal or Vertical
- Assembled:
- Unassembled
- Maximum Ambient Operating Temperature:
- 104 Degrees F
- Flange Depth:
- 1 in
- Guard Type:
- None
- Method of Construction:
- Cast
- Venturi Depth:
- 5 1/4 in
- For Cut-Out Width:
- 32 1/2 in
- Package Quantity:
- 1
