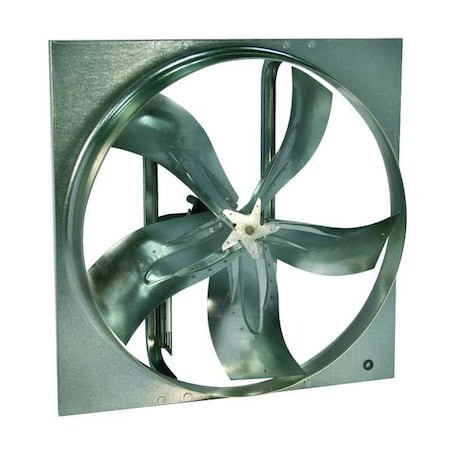

Exhaust Fan, 54 In, Less Drive Package - 1AHA6
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Exhaust Fan, 54 In, Less Drive Package - 1AHA6
Exhaust Fan, Assembled Unassembled, Blade Diameter 54 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 5 hp, For Maximum Motor Speed 507 RPM, For Minimum Motor Horsepower 1 1/2 hp, For Minimum Motor Speed 343 RPM, Maximum Airflow 44,535 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 30,129 cfm, For Cut-Out Height 56 1/2 in, For Cut-Out Width 56 1/2 in, For Cut-Out Diameter 57 1/2 in, Guard Type None, Method of Construction Stamped, Number of Blades 5
- Country of Origin:
- United States
- Exhaust/Supply Fan Item:
- Exhaust Fan
- Type:
- Medium Duty Belt Drive Less Drive Package
- Blade Dia.:
- 54 in
- CFM Range:
- 30,129 to 44,535
- Exhaust/Supply Fan Motor HP:
- 1-1/2 to 5
- Drive Package With Motor Included:
- No
- Dimension E (In.):
- 16 1/2 in
- Venturi Clearance Dia. (In.):
- 55 in
- Bearing Type:
- Regreasable Pillow Block
- Dimension B (In.):
- 23 in
- Galvanized Wall Shutter No.:
- 3C115
- Venturi Depth (In.):
- 6 1/2 in
- Height (In.):
- 60 in
- Dimension F (In.):
- 55 in
- Dimension D (In.):
- 2 in
- Fiberglass Wall Shutter No.:
- 5C221
- Intake Guard No.:
- 1WBU8
- Wall Collar Stock No.:
- 1WBV7
- Mounting Position:
- Horizontal or Vertical
- Width (In.):
- 60 in
- Weatherhood No.:
- 1WBW5
- Aluminum Wall Shutter No.:
- 3C313
- Dimension C (In.):
- 6 1/2 in
- Requires:
- Wall Collar and Shutter For New Installation
- Wall Housing Item No.:
- 3FKG4
- Frame Material:
- Steel
- Max. Depth (In.):
- 23 in
- Bearing Size (In.):
- 1 1/4 in
- Dimension A (In.):
- 60 in
- Max. Ambient Temp. (F):
- 104 Degrees F
- Flange Depth (In.):
- 2 in
- Number of Blades:
- 5
- Drive Package Included:
- No
- Item:
- Exhaust Fan
- Propeller Material:
- Steel
- RPM Range:
- 343 to 507
- Shaft Dia. (In.):
- 1 1/4 in
- Standards:
- AMCA Air and Sound, UL/cUL 705
- Overall Width:
- 60 in
- Overall Height:
- 60 in
- Maximum Static Pressure:
- 0.75 in wg
- Method of Construction:
- Stamped
- Maximum Inlet Temperature:
- 104 Degrees F
- Flange Width:
- 60 in
- Guard Type:
- None
- Flange Depth:
- 2 in
- Venturi Diameter:
- 55 in
- Venturi Depth:
- 6 1/2 in
- Maximum Airflow:
- 44,535 cfm
- Shaft Diameter:
- 1 1/4 in
- Includes Motor:
- No
- Blade Finish:
- Galvanized
- For Cut-Out Height:
- 56 1/2 in
- Bearing Size:
- 1 1/4 in
- Overall Depth:
- 23 in
- Overall Diameter:
- 54 in
- Frame Finish:
- Zinc-Plated
- For Maximum Motor Speed:
- 507 RPM
- Mounting Orientation:
- Horizontal or Vertical
- For Minimum Motor Speed:
- 343 RPM
- Manufacturer Warranty Length:
- 1 yr
- For Minimum Motor Horsepower:
- 1 1/2 hp
- For Maximum Motor Horsepower:
- 5 hp
- For Cut-Out Diameter:
- 57 1/2 in
- Ventilation Type:
- Exhaust
- Maximum Ambient Operating Temperature:
- 104 Degrees F
- For Cut-Out Width:
- 56 1/2 in
- Fan Style:
- Panel
- Blade Material:
- Steel
- Blade Diameter:
- 54 in
- Minimum Airflow:
- 30,129 cfm
- Assembled:
- Unassembled
- Package Quantity:
- 1
-
-
-
-
