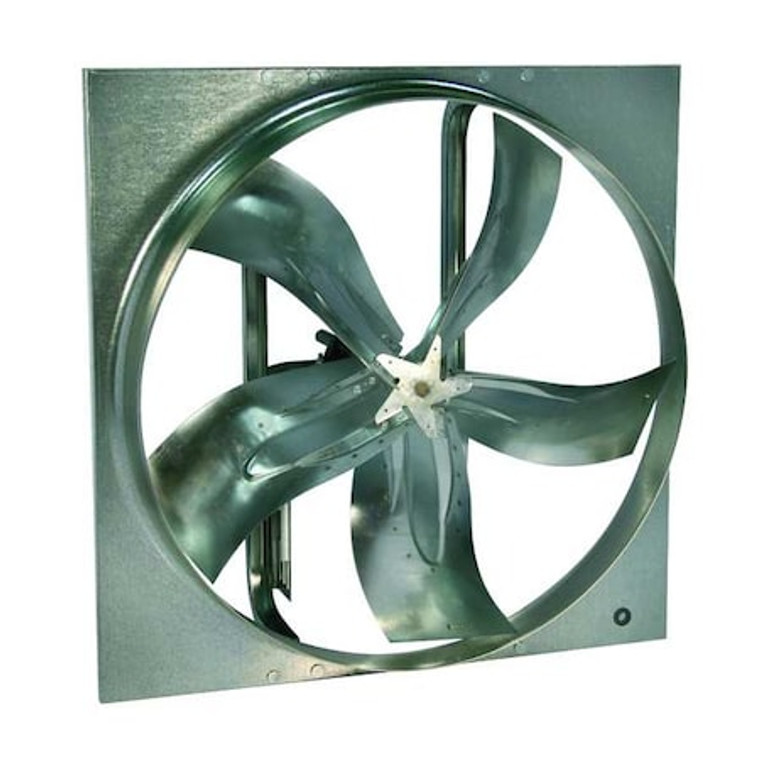

Exhaust Fan, 36 In, Less Drive Package - 1AHA3

Exhaust Fan, 36 In, Less Drive Package - 1AHA3

Dayton
SKU:
1AHA3
|
UPC:
190735131275
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Exhaust Fan, Assembled Unassembled, Blade Diameter 36 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 2 hp, For Maximum Motor Speed 684 RPM, For Minimum Motor Horsepower 1/2 hp, For Minimum Motor Speed 433 RPM, Maximum Airflow 19,733 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 12,492 cfm, For Cut-Out Height 38 1/2 in, For Cut-Out Width 38 1/2 in, For Cut-Out Diameter 38 1/2 in, Guard Type None, Method of Construction Stamped, Number of Blades 5
Additional Information
Country of Origin:
United States
Exhaust/Supply Fan Item:
Exhaust Fan
Type:
Medium Duty Belt Drive Less Drive Package
Blade Dia.:
36 in
CFM Range:
12,492 to 19,733
Exhaust/Supply Fan Motor HP:
1/2 to 3
Drive Package With Motor Included:
No
Propeller Material:
Steel
Fiberglass Wall Shutter No.:
5C217
Shaft Dia. (In.):
1 in
Dimension E (In.):
16 in
Venturi Depth (In.):
6 in
Number of Blades:
5
Requires:
Wall Collar and Shutter For New Installation
Bearing Type:
Regreasable Pillow Block
Wall Collar Stock No.:
1WBV3
Item:
Exhaust Fan
Dimension C (In.):
6 in
RPM Range:
433 to 684
Mounting Position:
Horizontal or Vertical
Dimension D (In.):
1 in
Bearing Size (In.):
1 in
Dimension B (In.):
22 in
Max. Depth (In.):
22 in
Weatherhood No.:
1WBW2
Galvanized Wall Shutter No.:
4C521
Intake Guard No.:
1WBU5
Width (In.):
40 in
Flange Depth (In.):
1 in
Wall Housing Item No.:
3FKG1
Dimension A (In.):
40 in
Aluminum Wall Shutter No.:
3C310
Height (In.):
40 in
Max. Ambient Temp. (F):
104 Degrees F
Frame Material:
Steel
Drive Package Included:
No
Dimension F (In.):
36 3/8 in
Venturi Clearance Dia. (In.):
36 3/8 in
Overall Width:
40 in
Standards:
AMCA Air and Sound, UL/cUL 705
Overall Height:
40 in
Overall Diameter:
36 in
Method of Construction:
Stamped
Venturi Depth:
6 in
Includes Motor:
No
Frame Finish:
Zinc-Plated
Overall Depth:
22 in
Bearing Size:
1 in
Manufacturer Warranty Length:
1 yr
Flange Depth:
1 in
Shaft Diameter:
1 in
For Minimum Motor Speed:
433 RPM
Flange Width:
40 in
Minimum Airflow:
12,492 cfm
Maximum Inlet Temperature:
104 Degrees F
Fan Style:
Panel
Blade Material:
Steel
Maximum Airflow:
19,733 cfm
For Cut-Out Height:
38 1/2 in
Guard Type:
None
Venturi Diameter:
36 3/8 in
Mounting Orientation:
Horizontal or Vertical
Blade Diameter:
36 in
For Cut-Out Width:
38 1/2 in
Maximum Static Pressure:
0.75 in wg
For Maximum Motor Horsepower:
2 hp
Ventilation Type:
Exhaust
For Minimum Motor Horsepower:
1/2 hp
For Cut-Out Diameter:
38 1/2 in
Maximum Ambient Operating Temperature:
104 Degrees F
For Maximum Motor Speed:
684 RPM
Assembled:
Unassembled
Blade Finish:
Galvanized
Package Quantity:
1
