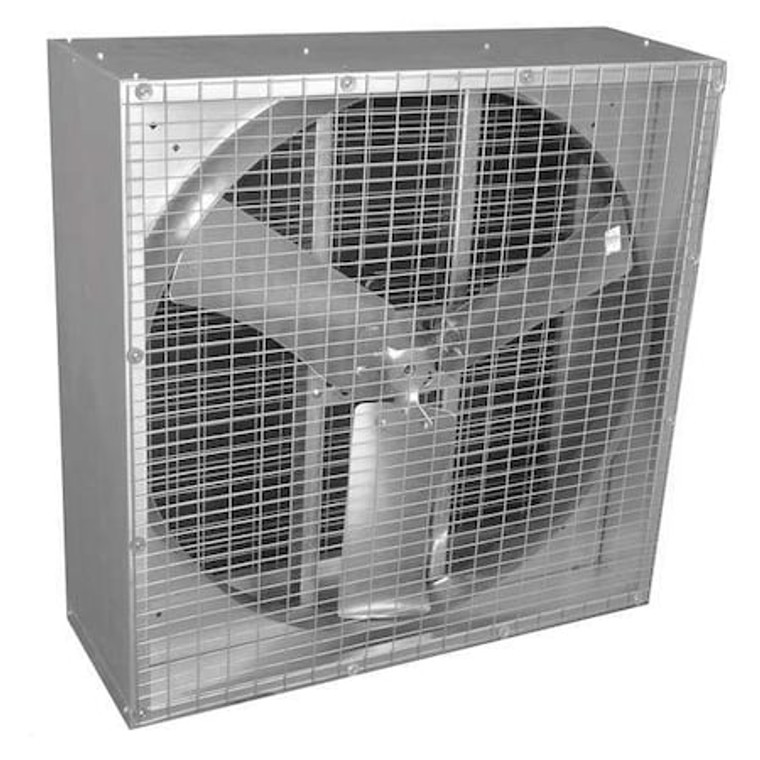

Exhaust Fan, 36 In, D/D - 44YU07

Exhaust Fan, 36 In, D/D - 44YU07

Dayton
SKU:
44YU07
|
UPC:
190735299777
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 36 in, Blade Material Steel, Drive Type Direct Drive, Exhaust Airflow @ 0.000 in SP 11,077 cfm, For Cut-Out Height 40 3/4 in, For Cut-Out Width 40 3/4 in, For Maximum Wall Thickness 8 in, For Minimum Wall Thickness 6 in, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Steel, Housing Finish Galvanized, Includes Mesh Screen, Includes Dehumidistat No
Additional Information
Country of Origin:
United States
Item:
Agricultural Exhaust Fan
Type:
Direct Drive, Assembled
CFM @ 0.000-In. SP:
11,077
Venturi Clearance Dia. (In.):
5/16 in
Dimension B (In.):
14 in
Max. Depth (In.):
14 in
Venturi Depth (In.):
4 in
Phase:
1
CFM/Watt @ 0.100-In. SP:
16.4
Shaft Dia. (In.):
5/8 in
Frame Material:
Steel
Motor Type:
3-Phase
Opening Required H (In.):
40 3/4 in
Max. Ambient Temp. (F):
104 Degrees F
CFM @ 0.100-In. SP:
9381
HP:
1/2 hp
CFM @ 0.050-In. SP:
10,217
Mounting Location:
Vertical
Full Load Amps:
5.2/2.6
Agency Compliance:
Motor is UL recognized for USA & Canada.
Width (In.):
40 7/64 in
Opening Required W (In.):
40 3/4 in
Bearing Type:
Permanently Lubricated Sealed Ball
Dimension A (In.):
40 1/8 in
CFM/Watt @ 0.050-In. SP:
18.6
Dimension D (In.):
3/8 in
Voltage:
115/230
CFM/Watt @ 0.150-In. SP:
14.5
Frame Finish:
Galvanized
Propeller Dia. (In.):
36 in
Includes:
Mesh Screen
Motor Enclosure:
Totally Enclosed Air Over
Fan RPM:
850
Height (In.):
40 1/8 in
Hz:
60
Propeller Material:
Galvanized Steel
Mesh Size:
1 in x 2 in
Motor Insulation:
Class B
CFM @ 0.150-In. SP:
8557
CFM/Watt @ 0.000-In. SP:
21.1
Number of Blades:
3
Motor RPM:
825
Standards:
C-UL Listed, UL Listed
Overall Width:
40 1/8 in
Overall Height:
40 1/8 in
Venturi Depth:
4 in
Maximum Airflow:
11,077 cfm
Shaft Diameter:
5/8 in
Guard Finish:
Zinc Plated
Guard Material:
Steel
Overall Depth:
14 in
Motor Speed:
825 RPM
For Cut-Out Width:
40 3/4 in
Motor Horsepower:
1/2 hp
Exhaust Airflow @ 0.100 in SP:
9,381 cfm
Maximum Noise Level:
28 sones
Fan Style:
Box
Exhaust Airflow @ 0.000 in SP:
11,077 cfm
Number of Speeds:
1
Blade Material:
Steel
Housing Material:
Steel
Blade Diameter:
36 in
Nameplate Voltage:
115/230V AC
Number of Fans:
1
Maximum Ambient Operating Temperature:
104 Degrees F
Full Load Current:
5.2 A
Noise Level @ 0.000 in SP @ 5 ft:
28 sones
Includes Motor:
Yes
Mounting Orientation:
Vertical
Frequency:
60 Hz
Housing Finish:
Galvanized
Drive Type:
Direct Drive
For Maximum Wall Thickness:
8 in
For Minimum Wall Thickness:
6 in
Speed Controllable:
No
Noise Level @ 0.100 in SP @ 5 ft:
26.8 sones
Electrical Connection:
Hardwired
Includes Dehumidistat:
No
Guard Type:
Exhaust
For Cut-Out Height:
40 3/4 in
Assembled:
Assembled
Wattage:
620 W
Ventilation Type:
Exhaust
Package Quantity:
1
