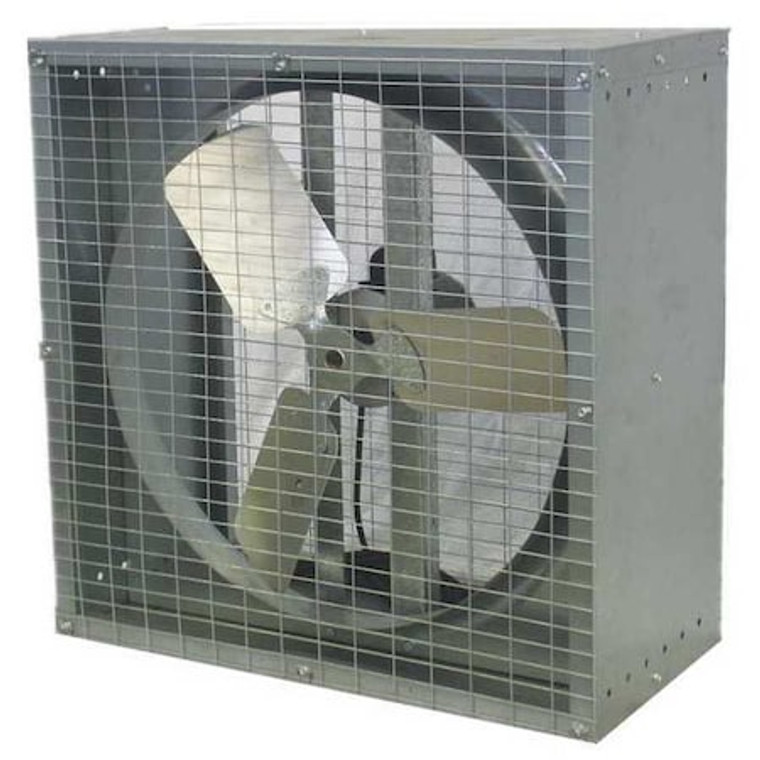

Exhaust Fan, 24In, D/D, 230V - 44YU13

Exhaust Fan, 24In, D/D, 230V - 44YU13

Dayton
SKU:
44YU13
|
UPC:
190735299838
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Agricultural Exhaust Fan, Assembled Assembled, Blade Diameter 24 in, Blade Material Steel, Drive Type Direct Drive, Exhaust Airflow @ 0.000 in SP 5,618 cfm, For Cut-Out Height 30 in, For Cut-Out Width 30 in, For Maximum Wall Thickness 8 in, For Minimum Wall Thickness 6 in, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Exhaust, Housing Material Steel, Housing Finish Galvanized, Includes Mesh Screen, Includes Dehumidistat No
Additional Information
Country of Origin:
United States
Item:
Agricultural Exhaust Fan
Type:
Direct Drive, Assembled
CFM @ 0.000-In. SP:
5618
HP:
1/2 hp
Voltage:
115/230
Opening Required H (In.):
30 in
Width (In.):
29 5/16 in
Opening Required W (In.):
30 in
Frame Finish:
Galvanized
CFM/Watt @ 0.100-In. SP:
9.3
Venturi Depth (In.):
3 1/2 in
Height (In.):
29 5/16 in
Frame Material:
Steel
Motor RPM:
1100
Venturi Clearance Dia. (In.):
5/16 in
Motor Type:
3-Phase
Bearing Type:
Permanently Lubricated Sealed Ball
Agency Compliance:
Motor is UL recognized for USA & Canada.
CFM/Watt @ 0.150-In. SP:
8.4
Includes:
Mesh Screen
CFM/Watt @ 0.050-In. SP:
10.2
Mounting Location:
Vertical
Dimension A (In.):
29 1/4 in
CFM/Watt @ 0.000-In. SP:
11.3
CFM @ 0.050-In. SP:
5192
Max. Ambient Temp. (F):
104 Degrees F
CFM @ 0.100-In. SP:
4845
Full Load Amps:
5.6/2.8
Dimension D (In.):
3/8 in
Motor Enclosure:
Totally Enclosed Air Over
Motor Insulation:
Class B
Phase:
1
Hz:
60
Number of Blades:
3
Mesh Size:
1 in x 2 in
Propeller Material:
Galvanized Steel
Propeller Dia. (In.):
24 in
Dimension B (In.):
14 1/2 in
Fan RPM:
1,143
Max. Depth (In.):
12 1/2 in
Shaft Dia. (In.):
5/8 in
CFM @ 0.150-In. SP:
4505
Overall Height:
29 5/16 in
Overall Width:
29 5/16 in
Standards:
C-UL Listed, UL Listed
Venturi Depth:
3 1/2 in
Shaft Diameter:
5/8 in
Motor Speed:
1,100 RPM
Blade Material:
Steel
Noise Level @ 0.000 in SP @ 5 ft:
23.3 sones
For Cut-Out Width:
30 in
Speed Controllable:
No
Guard Finish:
Zinc Plated
Maximum Airflow:
5,618 cfm
Maximum Noise Level:
23.3 sones
Exhaust Airflow @ 0.000 in SP:
5,618 cfm
Guard Type:
Exhaust
For Cut-Out Height:
30 in
Wattage:
620 W
Number of Speeds:
1
Electrical Connection:
Hardwired
Housing Material:
Steel
Blade Diameter:
24 in
For Minimum Wall Thickness:
6 in
Includes Motor:
Yes
Noise Level @ 0.100 in SP @ 5 ft:
21.8 sones
Housing Finish:
Galvanized
Nameplate Voltage:
115/230V AC
Frequency:
60 Hz
Ventilation Type:
Exhaust
Maximum Ambient Operating Temperature:
104 Degrees F
Drive Type:
Direct Drive
Overall Depth:
12 1/2 in
Full Load Current:
5.6 A
Guard Material:
Steel
Fan Style:
Box
For Maximum Wall Thickness:
8 in
Includes Dehumidistat:
No
Exhaust Airflow @ 0.100 in SP:
4,845 cfm
Number of Fans:
1
Assembled:
Assembled
Motor Horsepower:
1/2 hp
Mounting Orientation:
Vertical
Package Quantity:
1
