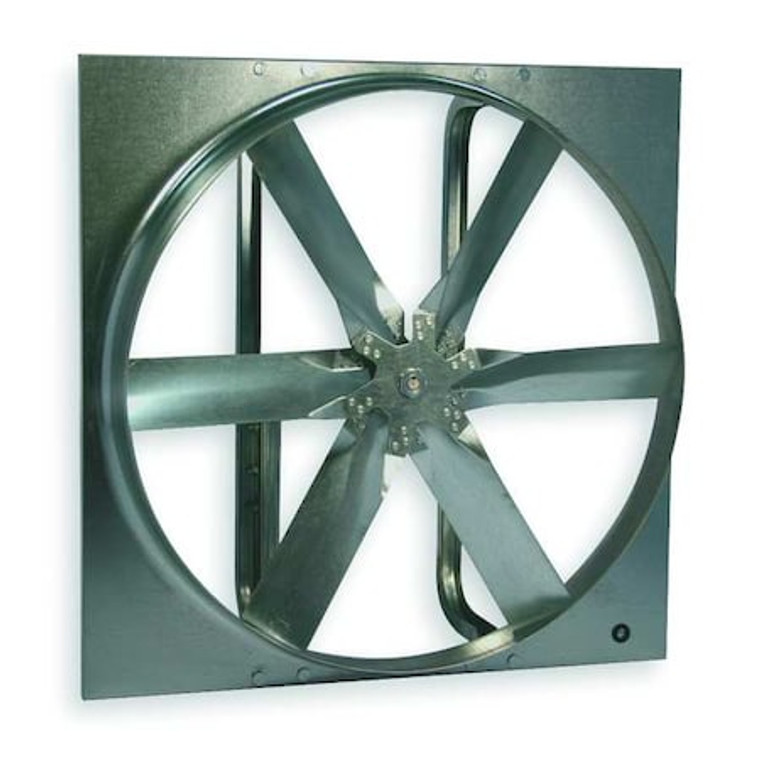

Exhaust Fan, 24 In, Less Drive Package - 1WDB9
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Exhaust Fan, 24 In, Less Drive Package - 1WDB9
Exhaust Fan, Assembled Unassembled, Blade Diameter 24 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 3/4 hp, For Maximum Motor Speed 1,352 RPM, For Minimum Motor Horsepower 1/4 hp, For Minimum Motor Speed 932 RPM, Maximum Airflow 6,003 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 4,105 cfm, For Cut-Out Height 26 1/2 in, For Cut-Out Width 26 1/2 in, For Cut-Out Diameter 26 1/2 in, Guard Type None, Method of Construction Stamped, Number of Blades 6
- Country of Origin:
- Mexico
- Promotion Restriction:
- Not eligible for promotion
- Exhaust/Supply Fan Item:
- Exhaust Fan
- Type:
- Standard Duty Belt Drive Less Drive Package
- Blade Dia.:
- 24 in
- CFM Range:
- 4105 to 6003
- Exhaust/Supply Fan Motor HP:
- 1/4 to 3/4
- Drive Package With Motor Included:
- No
- Number of Blades:
- 6
- Dimension F (In.):
- 24 3/8 in
- Wall Collar Stock No.:
- 1WBV1
- Shaft Dia. (In.):
- 3/4 in
- Bearing Type:
- Sealed Pillow Block
- Drive Package Included:
- No
- Weatherhood No.:
- 1WBV9
- Dimension A (In.):
- 28 in
- Max. Ambient Temp. (F):
- 104 Degrees F
- Dimension D (In.):
- 1 in
- Agency Compliance:
- AMCA
- Flange Depth (In.):
- 1 in
- Wall Housing Item No.:
- 3FKF8
- Mounting Position:
- Horizontal or Vertical
- Fiberglass Wall Shutter No.:
- 5C215
- Dimension C (In.):
- 4 3/8 in
- Height (In.):
- 28 in
- Max. Depth (In.):
- 18 in
- Venturi Depth (In.):
- 4 3/8 in
- Dimension E (In.):
- 13 5/8 in
- Frame Material:
- Steel
- Width (In.):
- 28 in
- Aluminum Wall Shutter No.:
- 3C308
- Intake Guard No.:
- 1WBU3
- RPM Range:
- 923 to 1352
- Item:
- Exhaust Fan
- Bearing Size (In.):
- 3/4 in
- Requires:
- Wall Collar and Shutter For New Installation
- Dimension B (In.):
- 18 in
- Galvanized Wall Shutter No.:
- 1C746
- Venturi Clearance Dia. (In.):
- 24 3/8 in
- Propeller Material:
- Steel
- Standards:
- AMCA Air and Sound, UL/cUL 705
- Overall Width:
- 28 in
- Overall Height:
- 28 in
- For Maximum Motor Speed:
- 1,352 RPM
- Includes Motor:
- No
- Venturi Diameter:
- 24 3/8 in
- Method of Construction:
- Stamped
- Fan Style:
- Panel
- For Cut-Out Height:
- 26 1/2 in
- Shaft Diameter:
- 3/4 in
- Ventilation Type:
- Exhaust
- Blade Material:
- Steel
- Bearing Size:
- 3/4 in
- Frame Finish:
- Zinc-Plated
- Overall Depth:
- 18 in
- For Minimum Motor Speed:
- 932 RPM
- Manufacturer Warranty Length:
- 1 yr
- For Cut-Out Width:
- 26 1/2 in
- Minimum Airflow:
- 4,105 cfm
- Assembled:
- Unassembled
- Maximum Inlet Temperature:
- 104 Degrees F
- Overall Diameter:
- 24 in
- Venturi Depth:
- 4 3/8 in
- For Maximum Motor Horsepower:
- 3/4 hp
- Blade Finish:
- Galvanized
- Maximum Static Pressure:
- 0.75 in wg
- Flange Depth:
- 1 in
- Flange Width:
- 28 in
- Maximum Ambient Operating Temperature:
- 104 Degrees F
- For Minimum Motor Horsepower:
- 1/4 hp
- Guard Type:
- None
- Mounting Orientation:
- Horizontal or Vertical
- Maximum Airflow:
- 6,003 cfm
- For Cut-Out Diameter:
- 26 1/2 in
- Blade Diameter:
- 24 in
- Package Quantity:
- 1
-
-
-
-
