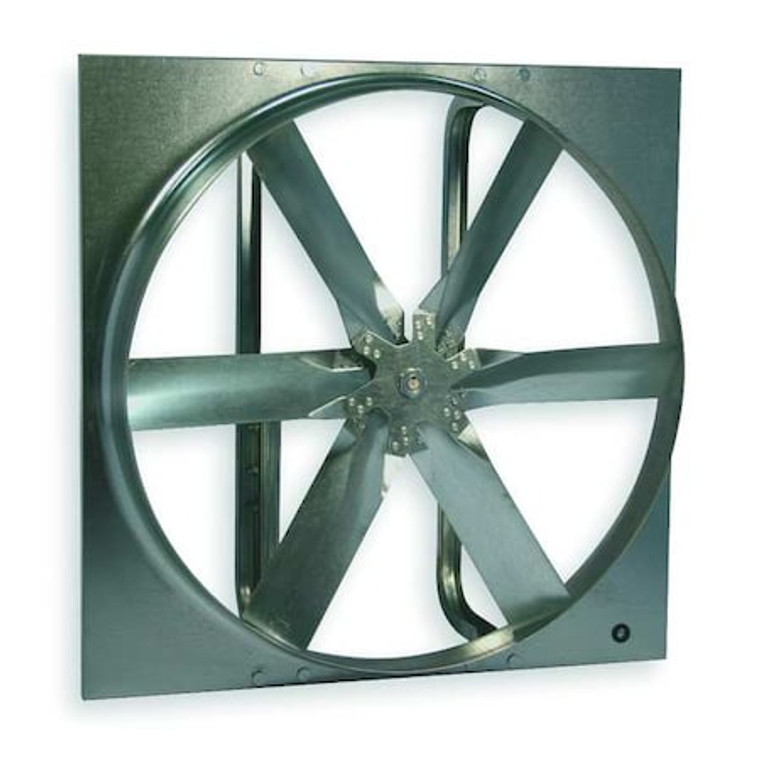

Exh Fan 42 In, Less Drive Pkg, Std Duty - 1WDC3

Exh Fan 42 In, Less Drive Pkg, Std Duty - 1WDC3

Dayton
SKU:
1WDC3
|
UPC:
190735149485
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Exhaust Fan, Assembled Unassembled, Blade Diameter 42 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 1 1/2 hp, For Maximum Motor Speed 608 RPM, For Minimum Motor Horsepower 1/3 hp, For Minimum Motor Speed 369 RPM, Maximum Airflow 20,998 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 10,191 cfm, For Cut-Out Height 44 1/2 in, For Cut-Out Width 44 1/2 in, For Cut-Out Diameter 44 1/2 in, Guard Type None, Method of Construction Stamped, Number of Blades 6
Additional Information
Country of Origin:
United States
Exhaust/Supply Fan Item:
Exhaust Fan
Type:
Standard Duty Belt Drive Less Drive Package
Blade Dia.:
42 in
CFM Range:
12,640 to 20,998
Exhaust/Supply Fan Motor HP:
1/3 to 1-1/2
Drive Package With Motor Included:
No
Frame Material:
Steel
Shaft Dia. (In.):
1 1/4 in
Wall Collar Stock No.:
1WBV4
Galvanized Wall Shutter No.:
1C210
Max. Depth (In.):
23 1/2 in
Dimension A (In.):
46 in
RPM Range:
366 to 608
Mounting Position:
Horizontal or Vertical
Width (In.):
46 in
Requires:
Wall Collar and Shutter For New Installation
Dimension E (In.):
17 1/2 in
Dimension B (In.):
23 1/2 in
Item:
Exhaust Fan
Intake Guard No.:
1WBU6
Aluminum Wall Shutter No.:
3C311
Venturi Clearance Dia. (In.):
42 1/2 in
Fiberglass Wall Shutter No.:
5C219
Dimension D (In.):
2 in
Dimension F (In.):
42 1/2 in
Flange Depth (In.):
2 in
Bearing Type:
Regreasable Pillow Block
Drive Package Included:
No
Agency Compliance:
UL And C-UL Listed
Max. Ambient Temp. (F):
104 Degrees F
Wall Housing Item No.:
3FKG2
Bearing Size (In.):
1 1/4 in
Number of Blades:
6
Venturi Depth (In.):
6 in
Dimension C (In.):
6 in
Height (In.):
46 in
Weatherhood No.:
1WBW3
Propeller Material:
Steel
Overall Width:
46 in
Standards:
AMCA Air and Sound, UL/cUL 705
Overall Height:
46 in
Includes Motor:
No
Overall Depth:
23 1/2 in
Fan Style:
Panel
Blade Finish:
Galvanized
Mounting Orientation:
Horizontal or Vertical
Assembled:
Unassembled
Minimum Airflow:
10,191 cfm
Frame Finish:
Zinc-Plated
Shaft Diameter:
1 1/4 in
Manufacturer Warranty Length:
1 yr
Ventilation Type:
Exhaust
For Minimum Motor Speed:
369 RPM
For Cut-Out Diameter:
44 1/2 in
Overall Diameter:
42 in
For Cut-Out Height:
44 1/2 in
Guard Type:
None
Maximum Ambient Operating Temperature:
104 Degrees F
Venturi Depth:
6 in
For Maximum Motor Horsepower:
1 1/2 hp
Venturi Diameter:
42 1/2 in
For Minimum Motor Horsepower:
1/3 hp
Maximum Static Pressure:
0.75 in wg
Flange Width:
46 in
Maximum Airflow:
20,998 cfm
For Cut-Out Width:
44 1/2 in
Maximum Inlet Temperature:
104 Degrees F
For Maximum Motor Speed:
608 RPM
Method of Construction:
Stamped
Blade Material:
Steel
Bearing Size:
1 1/4 in
Blade Diameter:
42 in
Flange Depth:
2 in
Package Quantity:
1
