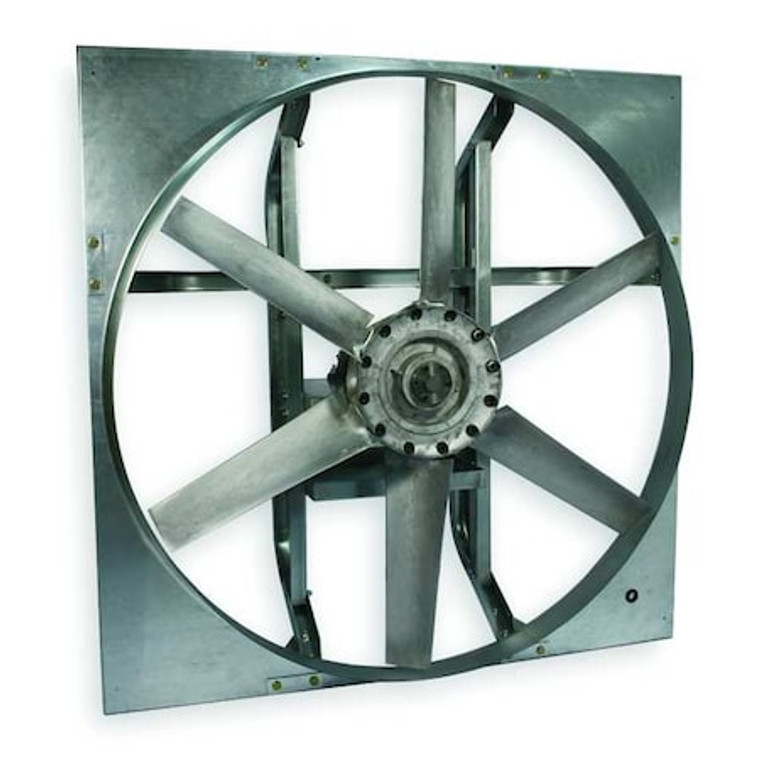

Exh Fan 36 In, Less Drive Pkg, Hvy Duty - 1AHB1
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Exh Fan 36 In, Less Drive Pkg, Hvy Duty - 1AHB1
Exhaust Fan, Assembled Unassembled, Blade Diameter 36 in, Blade Material Aluminum, Frame Material Steel, For Maximum Motor Horsepower 5 hp, For Maximum Motor Speed 1,166 RPM, For Minimum Motor Horsepower 1 hp, For Minimum Motor Speed 683 RPM, Maximum Airflow 26,979 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 15,803 cfm, For Cut-Out Height 38 1/2 in, For Cut-Out Width 38 1/2 in, For Cut-Out Diameter 38 1/2 in, Guard Type None, Method of Construction Cast, Number of Blades 6
- Country of Origin:
- United States
- Exhaust/Supply Fan Item:
- Exhaust Fan
- Type:
- Heavy Duty Belt Drive Less Drive Package
- Blade Dia.:
- 36 in
- CFM Range:
- 15,803 to 26,979
- Exhaust/Supply Fan Motor HP:
- 1 to 5
- Drive Package With Motor Included:
- No
- Shaft Dia. (In.):
- 1 1/4 in
- Number of Blades:
- 6
- Item:
- Exhaust Fan
- Aluminum Wall Shutter No.:
- 3C310
- Wall Collar Stock No.:
- 1WBV3
- Flange Depth (In.):
- 1 in
- Fiberglass Wall Shutter No.:
- 5C217
- Dimension E (In.):
- 16 in
- Venturi Depth (In.):
- 6 in
- Max. Ambient Temp. (F):
- 104 Degrees F
- RPM Range:
- 683 to 1166
- Dimension D (In.):
- 1 in
- Venturi Clearance Dia. (In.):
- 36 3/8 in
- Drive Package Included:
- No
- Propeller Material:
- Cast Aluminum
- Galvanized Wall Shutter No.:
- 4C521
- Dimension F (In.):
- 36 3/8 in
- Mounting Position:
- Horizontal or Vertical
- Requires:
- Wall Collar and Shutter For New Installation
- Weatherhood No.:
- 1WBW2
- Height (In.):
- 40 in
- Intake Guard No.:
- 1WBU5
- Bearing Size (In.):
- 1 1/4 in
- Width (In.):
- 40 in
- Frame Material:
- Steel
- Dimension C (In.):
- 6 in
- Bearing Type:
- Regreasable Pillow Block
- Dimension A (In.):
- 40 in
- Dimension B (In.):
- 22 in
- Wall Housing Item No.:
- 3FKG1
- Max. Depth (In.):
- 22 in
- Overall Height:
- 40 in
- Overall Width:
- 40 in
- Standards:
- AMCA Air and Sound, UL/cUL 705
- Mounting Orientation:
- Horizontal or Vertical
- Blade Diameter:
- 36 in
- Assembled:
- Unassembled
- Blade Material:
- Aluminum
- Overall Diameter:
- 36 in
- Manufacturer Warranty Length:
- 1 yr
- For Minimum Motor Horsepower:
- 1 hp
- Maximum Inlet Temperature:
- 104 Degrees F
- Venturi Diameter:
- 36 3/8 in
- Flange Width:
- 40 in
- Flange Depth:
- 1 in
- Shaft Diameter:
- 1 1/4 in
- Guard Type:
- None
- Minimum Airflow:
- 15,803 cfm
- Frame Finish:
- Zinc-Plated
- Venturi Depth:
- 6 in
- Maximum Static Pressure:
- 0.75 in wg
- For Cut-Out Diameter:
- 38 1/2 in
- Bearing Size:
- 1 1/4 in
- For Minimum Motor Speed:
- 683 RPM
- Method of Construction:
- Cast
- For Maximum Motor Horsepower:
- 5 hp
- Ventilation Type:
- Exhaust
- Includes Motor:
- No
- Overall Depth:
- 22 in
- Maximum Ambient Operating Temperature:
- 104 Degrees F
- Fan Style:
- Panel
- For Maximum Motor Speed:
- 1,166 RPM
- For Cut-Out Width:
- 38 1/2 in
- For Cut-Out Height:
- 38 1/2 in
- Maximum Airflow:
- 26,979 cfm
- Package Quantity:
- 1
