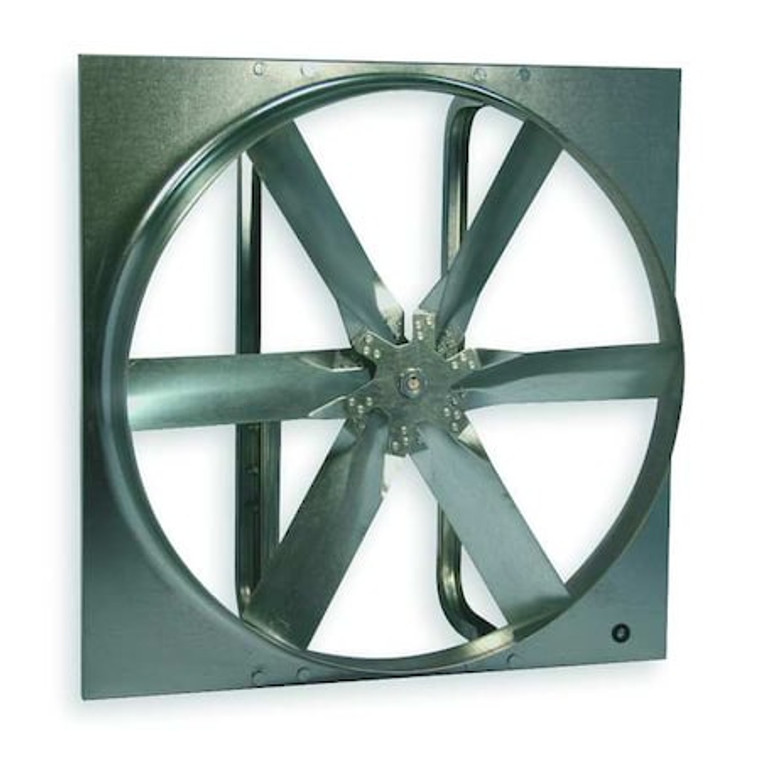

Exh Fan 30 In, Less Drive Pkg, Std Duty - 1WDC1
DaytonLog in for pricing
(No reviews yet)
Write a Review
Dayton
Exh Fan 30 In, Less Drive Pkg, Std Duty - 1WDC1
Exhaust Fan, Assembled Unassembled, Blade Diameter 30 in, Blade Material Steel, Frame Material Steel, For Maximum Motor Horsepower 1 hp, For Maximum Motor Speed 968 RPM, For Minimum Motor Horsepower 1/4 hp, For Minimum Motor Speed 621 RPM, Maximum Airflow 11,061 cfm, Maximum Static Pressure 0.75 in wg, Minimum Airflow 7,096 cfm, For Cut-Out Height 32 1/2 in, For Cut-Out Width 32 1/2 in, For Cut-Out Diameter 32 1/2 in, Guard Type None, Method of Construction Stamped, Number of Blades 6
- Country of Origin:
- Mexico
- Promotion Restriction:
- Not eligible for promotion
- Exhaust/Supply Fan Item:
- Exhaust Fan
- Type:
- Standard Duty Belt Drive Less Drive Package
- Blade Dia.:
- 30 in
- CFM Range:
- 7096 to 11,061
- Exhaust/Supply Fan Motor HP:
- 1/4 to 1
- Drive Package With Motor Included:
- No
- Agency Compliance:
- UL And C-UL Listed
- Aluminum Wall Shutter No.:
- 3C309
- Wall Housing Item No.:
- 3FKF9
- Max. Ambient Temp. (F):
- 104 Degrees F
- Bearing Size (In.):
- 1 in
- Flange Depth (In.):
- 1 in
- Dimension D (In.):
- 1 in
- Number of Blades:
- 6
- Mounting Position:
- Horizontal or Vertical
- Frame Material:
- Steel
- RPM Range:
- 621 to 968
- Height (In.):
- 34 in
- Dimension E (In.):
- 16 1/4 in
- Requires:
- Wall Collar and Shutter For New Installation
- Galvanized Wall Shutter No.:
- 1C055
- Fiberglass Wall Shutter No.:
- 5C216
- Dimension C (In.):
- 5 1/4 in
- Propeller Material:
- Steel
- Bearing Type:
- Regreasable Pillow Block
- Width (In.):
- 34 in
- Dimension A (In.):
- 34 in
- Venturi Clearance Dia. (In.):
- 30 3/8 in
- Drive Package Included:
- No
- Dimension F (In.):
- 30 3/8 in
- Dimension B (In.):
- 21 1/2 in
- Max. Depth (In.):
- 21 1/2 in
- Weatherhood No.:
- 1WBW1
- Wall Collar Stock No.:
- 1WBV2
- Intake Guard No.:
- 1WBU4
- Venturi Depth (In.):
- 5 1/4 in
- Item:
- Exhaust Fan
- Shaft Dia. (In.):
- 3/4 in
- Overall Height:
- 34 in
- Standards:
- AMCA Air and Sound, UL/cUL 705
- Overall Width:
- 34 in
- Guard Type:
- None
- For Minimum Motor Horsepower:
- 1/4 hp
- For Cut-Out Height:
- 32 1/2 in
- Fan Style:
- Panel
- Blade Material:
- Steel
- Blade Finish:
- Galvanized
- Overall Diameter:
- 30 in
- Mounting Orientation:
- Horizontal or Vertical
- Flange Width:
- 34 in
- Flange Depth:
- 1 in
- Ventilation Type:
- Exhaust
- Assembled:
- Unassembled
- Manufacturer Warranty Length:
- 1 yr
- Maximum Airflow:
- 11,061 cfm
- Venturi Diameter:
- 30 3/8 in
- Includes Motor:
- No
- For Cut-Out Width:
- 32 1/2 in
- For Minimum Motor Speed:
- 621 RPM
- Blade Diameter:
- 30 in
- Venturi Depth:
- 5 1/4 in
- Maximum Inlet Temperature:
- 104 Degrees F
- For Maximum Motor Horsepower:
- 1 hp
- Frame Finish:
- Zinc-Plated
- For Cut-Out Diameter:
- 32 1/2 in
- Minimum Airflow:
- 7,096 cfm
- Shaft Diameter:
- 3/4 in
- Overall Depth:
- 21 1/2 in
- For Maximum Motor Speed:
- 968 RPM
- Bearing Size:
- 3/4 in
- Maximum Ambient Operating Temperature:
- 104 Degrees F
- Method of Construction:
- Stamped
- Maximum Static Pressure:
- 0.75 in wg
- Package Quantity:
- 1
-
-
-
-
