Enclosure, Push Button - PB9
WiegmannLog in for pricing
(No reviews yet)
Write a Review
Wiegmann
Enclosure, Push Button - PB9
Push Button Enclosure, Number of Columns 3, Number of Holes 9, NEMA Rating 12, 13, 4, Conduit Size No Conduit Entrance Holes Provided, Dimensions 9.50 in H x 8.50 in W x 3.09 in D, Hole Size 30 mm, Material Carbon Steel, Height 9.5 in, Width 8.5 in, Depth 3.09 in, Color Gray, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Type Oil Tight, Mounting Style External Plates, Standards cULus, UL Listed
- Country of Origin:
- Mexico
- Item:
- Push Button Enclosure
- Number of Columns:
- 3
- Hole Size:
- 30 mm
- Material:
- Carbon Steel
- Conduit Size:
- No Conduit Entrance Holes Provided
- Number of Holes:
- 9
- NEMA Rating:
- 12, 13, 4
- Dimensions:
- 9.50 in H x 8.50 in W x 3.09 in D
- Height:
- 9.5 in
- Width:
- 8.5 in
- Depth:
- 3.09 in
- Color:
- Gray
- Includes:
- Captive Cover Screws, Closed Cell Oil Resistant Gasket
- Standards:
- cULus, UL Listed
- Type:
- Oil Tight
- Mounting Style:
- External Plates
- Features:
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard 4-w
- Mounting Type:
- External Mounting Plates
- Series:
- PB
- Cover Type:
- Pushbutton;Screw
- Mounting:
- External Mounting Plates
- Construction:
- Continuously Welded Seams
- Application:
- Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water.
- Standard:
- cULus
- Actual Depth:
- 9.500 in
- Listings:
- UL, CSA
- UL Listed:
- Yes
- Certified Listed:
- cULus
- Finish Type:
- Polyester Powder
- Cubic Capacity:
- 900 cu.in
- Actual Height:
- 9.500 in
- Actual Width:
- 8.500 in
- NEMA Enclosure Rating:
- 4
- Overall Depth:
- 3 1/8 in
- Overall Width:
- 8 13/16 in
- Panel Cutout Diameter:
- 30 mm
- Compatible Conduit Size - Maximum:
- No Conduit Entrance Holes Provided
- Overall Height:
- 9 3/4 in
- Package Quantity:
- 1
-
-

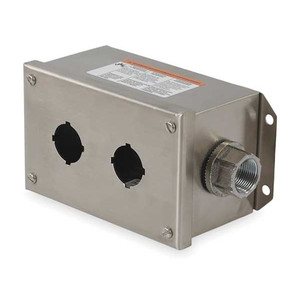

Pushbutton Enclosure, 7.74 in. H, 2 Holes - 9001KYSS2
