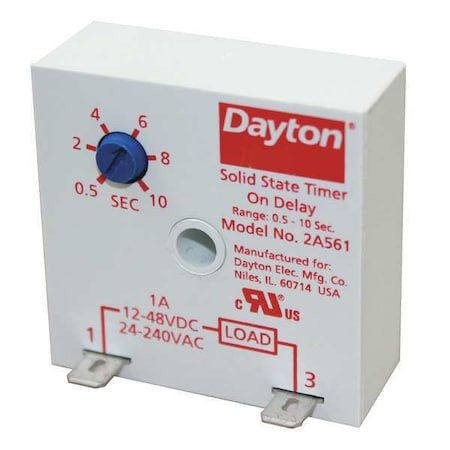

Encapsulated Timer Relay, 1A, Solid State, Function - Timing Relay: On Delay - 2A561

Encapsulated Timer Relay, 1A, Solid State, Function - Timing Relay: On Delay - 2A561

Dayton
SKU:
2A561
|
UPC:
190735216323
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Single Function Encapsulated Timing Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 240V DC, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 24 to 120V, Contact Rating (DC) 1 A @ 12 to 24V, Current Rating 1 A, Number of Delay Functions 1, Delay Function On Delay, Electrical Connection Screw Terminal, Input Voltage 12 to 48V DC, 24 to 240V AC, Minimum Time Setting 0.5 sec, Maximum Time Setting 10 sec, Number of Pins 2, Sealing Encapsulated, Mounting Style Surface
Additional Information
Country of Origin:
United States
Item - Relay:
Single Function Encapsulated Timing Relay
Function - Timing Relay:
On Delay
AC Contact Rating - Relay:
1.00A @ 24 to 120V
DC Contact Rating - Relay:
1.00A @ 12 to 24V
Number of Pins - Relay:
2
Adjustment Method - Timer:
Potentiometer
Min. Time Setting - Timer:
0.5 sec
Max. Time Setting - Timer:
10 sec
Type of Output:
Solid State
Timer Range:
0.50 sec. to 10.00 sec.
Item:
Single Function Encapsulated Timing Relay
Contact Form:
SPST-NO
Body Depth - Relay:
2.0 in
Body Width - Relay:
2.0 in
Body Height - Relay:
0.79 in
Adjustment Method:
Potentiometer
Overall Height - Relay:
1.14 in
Contact Amp Rating (Resistive):
1A
Status Indicator:
None
Operating Functions:
1
Contact Form - Relay:
SPST-NO
Mounting - Relay:
Surface
Hz - Electrical:
50 Hz, 60 Hz
Input or Control Voltage Range:
24 to 240VAC, 12 to 48VDC
Pins:
2
Function:
On Delay
Output:
Solid State
Mounting:
Surface
Input or Control Voltage:
12 to 48V DC, 24 to 240V AC
Standards:
CE Certified, UL Listed
Hz:
50/60
Input Voltage:
12 to 48V DC, 24 to 240V AC
Electrical Connection:
Screw Terminal
Minimum Time Setting:
0.5 sec
Current Rating:
1 A
Number of Delay Functions:
1
Body Height:
0.79 in
Frequency:
50/60 Hz
Contact Rating (DC):
1 A @ 12 to 24V
Mounting Style:
Surface
Contact Rating (AC):
1 A @ 24 to 120V
Maximum Time Setting:
10 sec
Body Depth:
2 in
Overall Depth:
1.14 in
Sealing:
Encapsulated
Base Shape:
Square
Number of Pins:
2
Delay Function:
On Delay
Body Width:
2 in
Reset Method:
Time-Limit Reset
Coil Voltage:
240V DC
Package Quantity:
1
