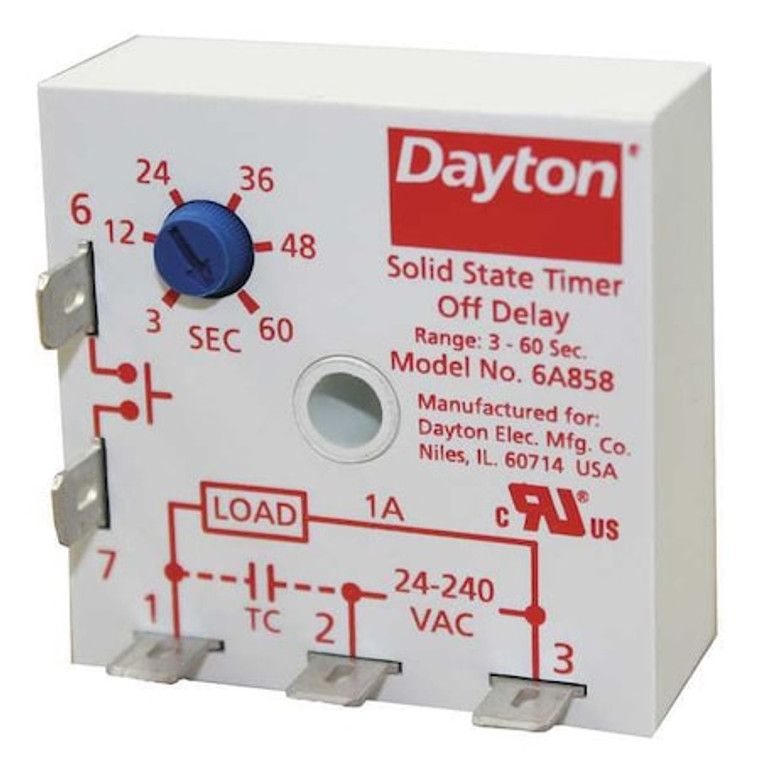

Encapsulated Timer Relay, 1A, Solid State - 6A858

Encapsulated Timer Relay, 1A, Solid State - 6A858

Dayton
SKU:
6A858
|
UPC:
190735359723
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Single Function Encapsulated Timing Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 240V AC, Contact Form SPST-NO, Contact Rating (AC) 1 A @ 24 to 240V, Contact Rating (DC) Not Applicable, Current Rating 1 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Screw Terminal, Input Voltage 24 to 240V AC, Minimum Time Setting 3 sec, Maximum Time Setting 60 sec, Number of Pins 5, Sealing Encapsulated, Mounting Style Surface, Body Depth 2 in
Additional Information
Country of Origin:
United States
Item - Relay:
Single Function Encapsulated Timing Relay
Function - Timing Relay:
Off Delay
AC Contact Rating - Relay:
1.00A @ 120V
Number of Pins - Relay:
5
Adjustment Method - Timer:
Potentiometer
Min. Time Setting - Timer:
3 sec
Max. Time Setting - Timer:
1 min
Contact Form:
SPST-NO
Standards:
CE Certified, UL Listed
Hz - Electrical:
50 Hz, 60 Hz
Input or Control Voltage Range:
24 to 240VAC
Function:
Off Delay
Overall Height - Relay:
1.14 in
Input or Control Voltage:
24 to 240V AC
Hz:
50/60
Contact Form - Relay:
SPST-NO
Timer Range:
3.00 sec. to 60.00 sec.
Item:
Single Function Encapsulated Timing Relay
Body Depth - Relay:
2.0 in
Output:
Solid State
Contact Amp Rating (Resistive):
1A
Operating Functions:
2
Input Voltage:
24 to 240V AC
Type of Output:
Solid State
Body Height - Relay:
0.79 in
Mounting:
Surface
Mounting - Relay:
Surface
Pins:
5
Status Indicator:
None
Body Width - Relay:
2.0 in
Adjustment Method:
Potentiometer
Electrical Connection:
Screw Terminal
Frequency:
50/60 Hz
Delay Function:
Off Delay
Mounting Style:
Surface
Body Height:
0.79 in
Minimum Time Setting:
3 sec
Base Shape:
Square
Contact Rating (AC):
1 A @ 24 to 240V
Current Rating:
1 A
Overall Depth:
1.14 in
Body Width:
2 in
Maximum Time Setting:
60 sec
Number of Pins:
5
Coil Voltage:
240V AC
Contact Rating (DC):
Not Applicable
Reset Method:
Time-Limit Reset
Sealing:
Encapsulated
Body Depth:
2 in
Number of Delay Functions:
1
Package Quantity:
1
