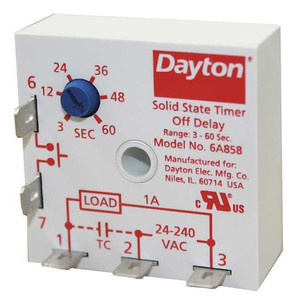

Encapsulated Timer Relay, 1A, Solid State - 5WML9

Encapsulated Timer Relay, 1A, Solid State - 5WML9

Dayton
SKU:
5WML9
|
UPC:
190735354544
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Single Function Encapsulated Timing Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 125V DC, Contact Form SPST-NO, Contact Rating (AC) Not Applicable, Contact Rating (DC) 1 A @ 12 to 125V, Current Rating 1 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Screw Terminal, Input Voltage 12 to 125V DC, Minimum Time Setting 3 sec, Maximum Time Setting 60 sec, Number of Pins 5, Sealing Encapsulated, Mounting Style Surface, Body Depth 2 in
Additional Information
Country of Origin:
United States
Item - Relay:
Single Function Encapsulated Timing Relay
Function - Timing Relay:
Off Delay
DC Contact Rating - Relay:
1.00A @ 24V
Number of Pins - Relay:
5
Adjustment Method - Timer:
Potentiometer
Min. Time Setting - Timer:
3 sec
Max. Time Setting - Timer:
1 min
Mounting - Relay:
Surface
Body Width - Relay:
2.0 in
Hz:
Not Applicable
Standards:
CE Certified, UL Listed
Operating Functions:
2
Status Indicator:
None
Overall Height - Relay:
1.14 in
Input Voltage:
12 to 125V DC
Adjustment Method:
Potentiometer
Contact Amp Rating (Resistive):
1A
Input or Control Voltage:
12 to 125V DC
Body Height - Relay:
0.79 in
Item:
Single Function Encapsulated Timing Relay
Timer Range:
3.00 sec. to 60.00 sec.
Mounting:
Surface
Contact Form - Relay:
SPST-NO
Body Depth - Relay:
2.0 in
Pins:
5
Type of Output:
Solid State
Output:
Solid State
Contact Form:
SPST-NO
Input or Control Voltage Range:
12 to 125VDC
Function:
Off Delay
Electrical Connection:
Screw Terminal
Body Height:
0.79 in
Overall Depth:
1.14 in
Maximum Time Setting:
60 sec
Reset Method:
Time-Limit Reset
Minimum Time Setting:
3 sec
Body Depth:
2 in
Contact Rating (DC):
1 A @ 12 to 125V
Mounting Style:
Surface
Body Width:
2 in
Number of Pins:
5
Delay Function:
Off Delay
Sealing:
Encapsulated
Coil Voltage:
125V DC
Contact Rating (AC):
Not Applicable
Base Shape:
Square
Number of Delay Functions:
1
Current Rating:
1 A
Package Quantity:
1
