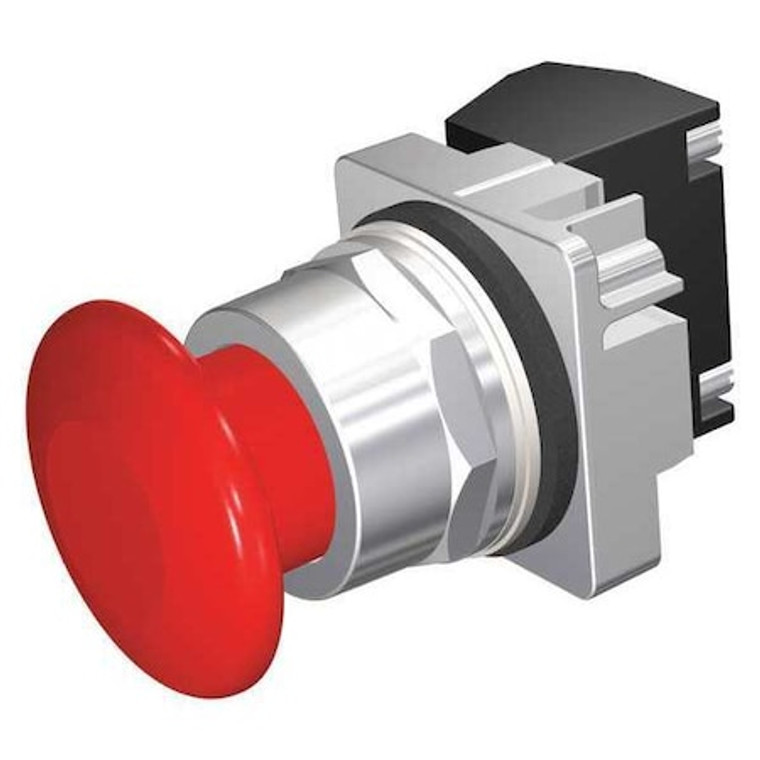

Emergency Stop Push Button, Size 30mm - 52PP2W2AP

Emergency Stop Push Button, Size 30mm - 52PP2W2AP

Siemens
SKU:
52PP2W2AP
|
UPC:
662643526844
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Emergency Stop Push Button, 30 mm, Maintained Action, 45mm Push-Pull Knob Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Legend/Background Color Black/Yellow, Standards CSA, REACH, UL Listed, Terminal Connection Screw
Additional Information
Country of Origin:
Mexico
Item:
Emergency Stop Push Button
Material:
Zinc Die Cast
Color:
Red
Contact Rating:
10A @ 600V AC, 5A @ 600V DC
Action:
Maintained
Bezel:
Chrome Plated Metal
Standards:
CSA, REACH, UL Listed
Number of Operators:
1
Legend:
Not Applicable
Head Material:
Plastic
Type of Operator:
45mm Push-Pull Knob
Legend/Background Color:
Black/Yellow
Includes:
Legend Plate with Stop Marking
Terminal Connection:
Screw
IP Rating:
IP20, IP66
NEMA Rating:
1, 12, 13, 3, 3R, 4, 4X
Basic Material:
Metal
NEMA Contact Rating Designation:
A600/P600
Size:
30 mm
Contact Form:
1NO/1NC
Features:
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type:
Emergency Stop Push Buttons
Lamp Type:
Not Applicable
Lamp Module Type:
Not Applicable
Bezel Material:
Chrome
Hazardous Location Specification:
Class I, Div 2, Group A, B, C, D
Mechanical Operating Durability:
3.00 x 10^5
Maintained Action Release:
Push/Pull
DC Contact Rating:
5 A @ 600 V
Manufacturer Warranty Length:
1 yr
NEMA Enclosure Rating:
1, 12, 13, 3, 3R, 4, 4X
Operator Voltage Rating - Maximum:
600 V AC
Operating Temperature - Minimum:
31 Degrees F
Mushroom Head Diameter:
44.45 mm
Operating Temperature - Maximum:
158 Degrees F
AC Contact Rating:
10 A @ 600 V
Operator Material:
Metal
Legend Background Color:
Not Applicable
Series:
Class 52
Resistance Properties:
Oil and Grease Resistant, Watertight
Legend Color:
Not Applicable
Panel Cutout Diameter:
30 mm
Lamp Voltage - Maximum:
Not Applicable
Overall Height:
4.49 in
Operator Illumination:
Non-Illuminated
Push Button Style:
Mushroom Head
Overall Width:
2.12 in
Number of Indicator Lights:
0
Head Color:
Red
Package Quantity:
1
