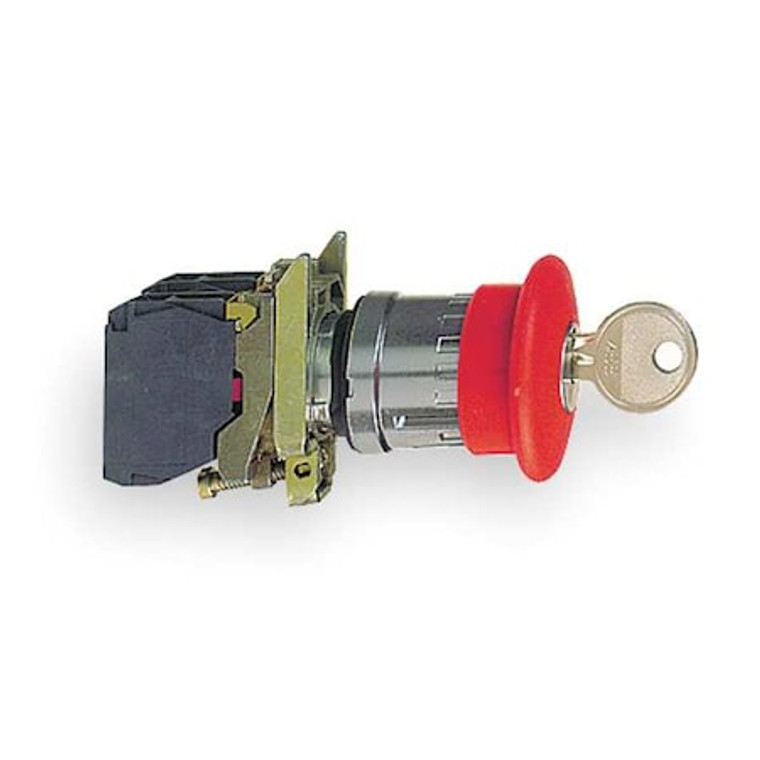

Emergency Stop Push Button, 22 mm, 1NO/1NC, Red - XB4BS9445

Emergency Stop Push Button, 22 mm, 1NO/1NC, Red - XB4BS9445

Schneider Electric
SKU:
XB4BS9445
|
UPC:
785901381006
Availability:
In Stock

Log in for pricing

(No reviews yet)
Current Stock:
Description
Emergency Stop Push Button, 22 mm, Maintained Action, 40mm Mushroom Head Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Zinc Die Cast, Color Red, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating IP66, IP67, IP69, IP69K, Legend Not Applicable
Additional Information
Country of Origin:
Czechia
Action:
Maintained
Size:
22 mm
Head Material:
Metal
NEMA Rating:
1, 12, 13, 2, 3, 4, 4X
Type of Operator:
40mm Mushroom Head
Lamp Type:
Not Applicable
Color:
Red
Contact Form:
1NO/1NC
Legend:
Not Applicable
Bezel:
Chrome Plated Zinc Die Cast
Number of Operators:
1
Item:
Emergency Stop Push Button
Contact Rating:
10A @ 600V AC
Bezel Material:
Chrome
Basic Material:
Metal
IP Rating:
IP66, IP67, IP69, IP69K
Standards:
Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508,
Material:
metal
Terminal Connection:
Screw Clamp
Lamp Module Type:
Not Applicable
Width:
40 mm
Height:
47 mm
Features:
Emergency Stop
Depth:
104 mm
Series:
XB4
DC Contact Rating:
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating:
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type:
Emergency Stop Push Buttons
Protective Treatment:
TH
Shape Of Signaling Unit Head:
round
Ambient Air Temperature For Storage:
-40-70°C
Contact Operation:
slow-break
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Resistance To High Pressure Washer:
7000000 Pa 55°C 0.1 m
Ik Degree Of Protection:
IK03 IEC 50102
Terminals Description Iso N°1:
(13-14)NO
Product Or Component Type:
emergency stop push-button || emergency switching off push-button
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 || IP69 || IP69K
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Electrical Shock Protection Class:
class I IEC 60536
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Fixing Collar Material:
zamak
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Mechanical Durability:
300000 cycles
Type Of Keylock:
key 455
Operator Profile:
red mushroom Ø 40 mm, unmarked
Head Type:
standard
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Mounting Diameter:
22 mm
Key Withdrawal Position:
center
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Product Certifications:
DNV || CSA || LROS (Lloyds register of shipping) || UL Listed || GL || BV
Operating Force:
44 N
Reset:
key release
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN 60947-1
Contacts Material:
silver alloy (Ag/Ni)
Device Presentation:
complete product
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Device Short Name:
XB4
Electrical Reliability:
Λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Contacts Usage:
standard contacts
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
[Ui] Rated Insulation Voltage:
600 V 3)EN 60947-1
Ambient Air Temperature For Operation:
-40-70°C
Terminals Description Iso N°1:
(13-14)NO
Lamp Voltage - Maximum:
Not Applicable
Legend Color:
Not Applicable
Operating Temperature - Maximum:
158 Degrees F
Overall Height:
1.85 in
Overall Width:
1.57 in
Head Color:
Red
Operator Voltage Rating - Maximum:
600 V AC/DC
Operating Temperature - Minimum:
-40 Degrees F
Hazardous Location Specification:
Not Applicable
Mushroom Head Diameter:
40 mm
Overall Depth:
4.09 in
Mechanical Operating Durability:
3.00 x 10^5
Maintained Action Release:
Key
Panel Cutout Diameter:
22 mm
Operator Illumination:
Non-Illuminated
NEMA Enclosure Rating:
13, 4X
Legend Background Color:
Not Applicable
Number of Indicator Lights:
0
Operator Material:
Metal
Resistance Properties:
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Manufacturer Warranty Length:
18 mo
Push Button Style:
Mushroom Head
Package Quantity:
1
